Specifications
Frequency Range :4000～8000 MHz
Insertion Loss≤2.0dB（Excluding theoretical loss:12.0dB）
Input Port VSWR:Typ.1.22 / Max.1.5
Output Port VSWR:Typ.1.14 / Max.1.3
Isolation :Typ.26dB / Min.18dB
Amplitude Balance:±0.4dB
Phase Balance:±5°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:30W; Combiner:2W
Operation Temperature:-45℃ ~ +85℃
Surface Finishing :Black paint

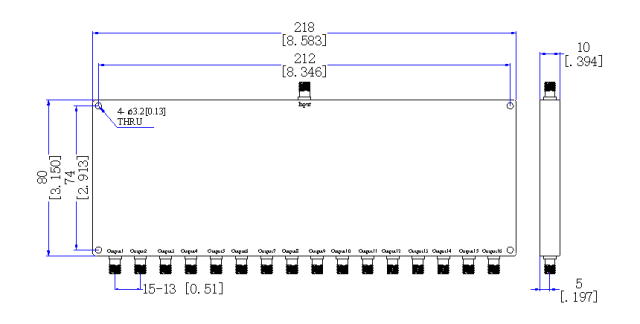

Outline Dimensions:218*80*10（mm）
Weight:500（g）
