Specifications
Frequency Range:10000～22300 MHz
Insertion Loss ≤ 0.8dB（Excluding theoretical loss:3.0 dB）
Input Port VSWR:Typ.1.18 / Max.1.50
Output Port VSWR :Typ.1.18 / Max.1.50
Isolation :Typ.24dB / Min.16dB
Amplitude Balance:±0.3dB
Phase Balance:±3°
Impedance:50 Ohms
Input/Output Connectors :SMA Female; SMP Male
Power Rating Splitter:10W; Combiner:1W
Operation Temperature: -45℃ ~ +85℃
Surface Finishing:Black Paint

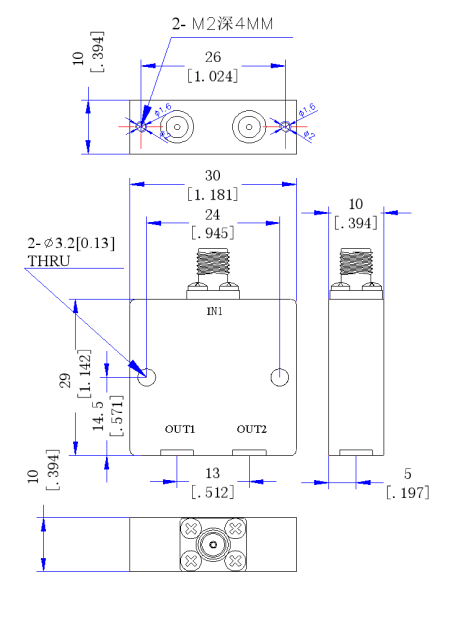

Outline Dimensions:29*30*10（mm）
