Specification:
GSM/GPRS/EDGE 850/900/1800/1900/2100
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900 MHz
Gain: 11 dBi
VSWR: ≤2
Horizontal Beamwidth: 360°
Vertical Beamwidth: 42°
Max power: 50 W
Nominal Impedance: 50 Ω
Connector : SMA male straight as default,Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!
Extended Cable :RG174 Cable
Cable length: 3M
Weight:0.184 KG
Polarization :Vertical
Radiation :Omni -directional
Size:60*400mm

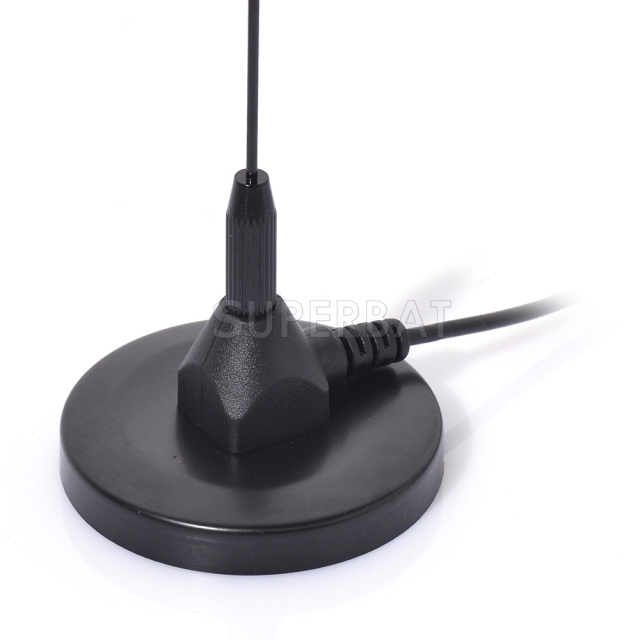

Mount Magnetic antenna base
This antenna can be used indoor and outdoor,and can be put on the Metal place.
