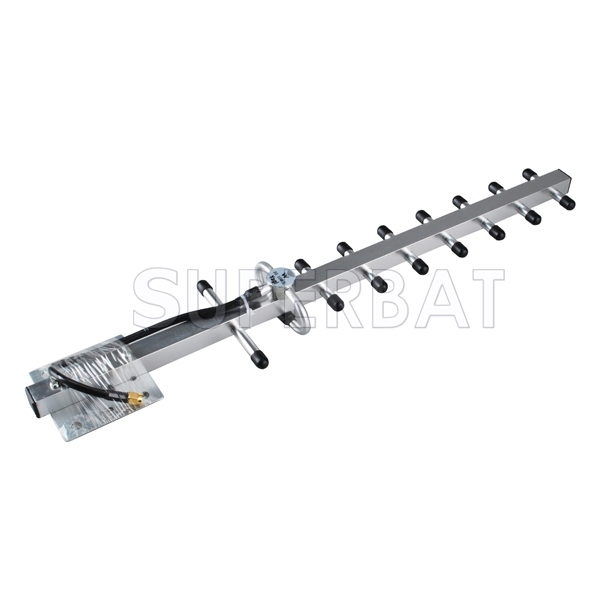

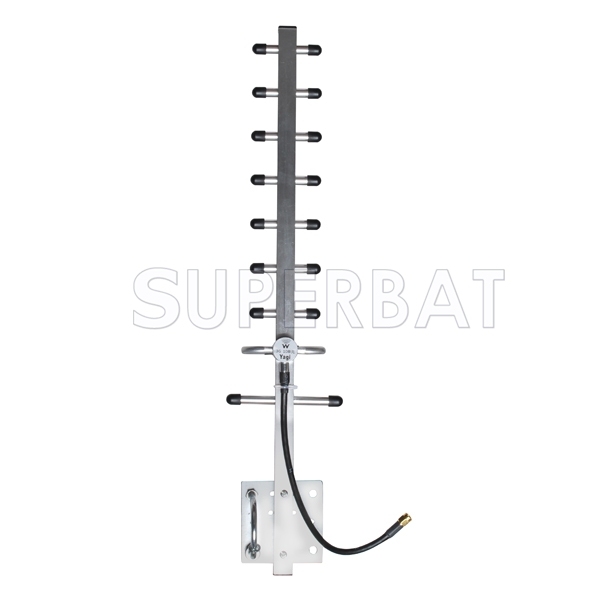

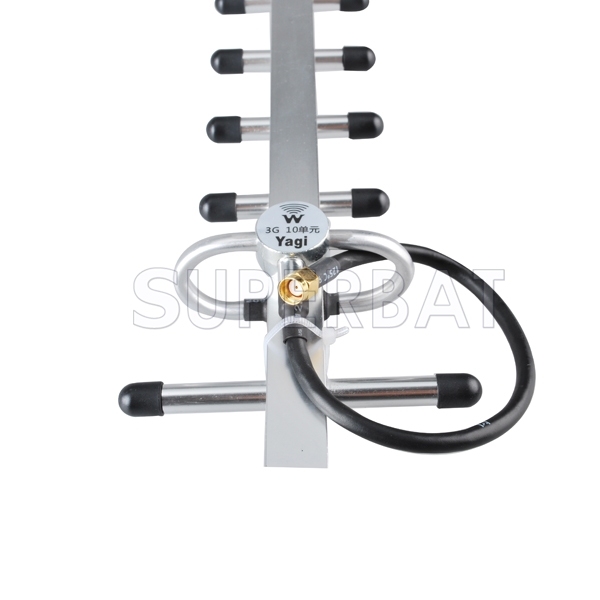

Product Name: Yagi Antennas
Electrical specifications
Frequency Range-MHz: 1990-2170MHz
VSWR ≤1.5
Input Impedance-Ω: 50
Gain-dBi: 12dbi
Polarization: Vertical
F/B ratio-dB:
Horizontal Beamwidth -°: 54/48/40/36/30
Vertical Beamwidth -°: 48/40/36/32/30
Maximum Power -W: 50
Bandwidth-MHz: 100
Connector: RP SMA male straight Connector default
SMA/SSMB/CRC9/TS9/MCX/MMCX/FME/BNC/TNC/SMB/MC-Card/MS-147..and so on.,please give us notes if the other connector is chosen !
Mechanical Specifications
Dimensions-mm
Weight: 245g
Length-cm: 46.3
Mounting Mast Diameter-mm: Φ50-100
