Specifications
Frequency Range:1～750 MHz
Insertion Loss ≤ 0.8 dB（Excluding theoretical loss:3.0 dB）
Input Port VSWR:Typ.1.15 / Max.1.40
Output Port VSWR:Typ.1.12 / Max.1.40
Isolation:Typ.26dB / Min.20dB
Amplitude Balance ≤ 0.3dB
Phase Balance:±3°
Impedance:50 Ohms
Input/Output Connectors:SMA-Female
Power Rating:Splitter:1W; Combiner:0.5W
Operation Temperature:-35℃ ~ +75℃
Surface Finishing:Black paint /Gray paint

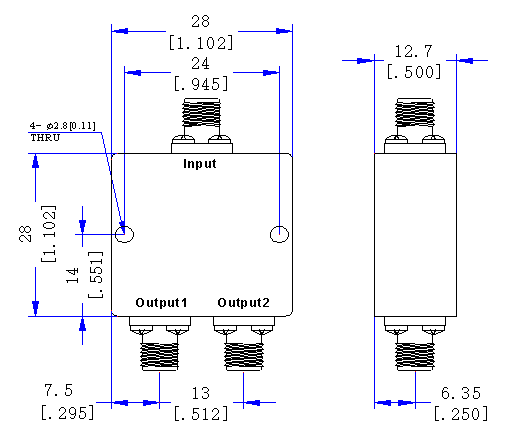

Outline Dimensions :28*28*12.7（mm）
Weight:45（g）
