Home > All Collections > 19500~20500 MHz SMP Male 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 19500~20500 MHz SMP Male 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
  • 19500~20500 MHz SMP Male 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter

19500~20500 MHz SMP Male 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter

No.MPD-19.5/20.5-2SMP
CONTACT US
  • 19500~20500 MHz SMP Male 2 Way Power Divider 50 Ohm Wide-Band Signal Splitter
Description

Specifications

Frequency Range:19500～20500 MHz

Insertion Loss ≤ 0.8 dB（Excluding theoretical loss:3.0 dB）

Input Port:VSWR:Typ.1.28 / Max.1.40

Output Port VSWR :Typ.1.26 / Max.1.40

Isolation:Typ.22dB / Min.18dB

Amplitude Balance ≤ 0.3dB

Phase Balance:±3°

Impedance:50 Ohms

Input/Output Connectors :SMP-Male

Power Rating Splitter:10W; Combiner:1W

Operation Temperature:-35℃ ~ +75℃

Surface Finishing:Black paint

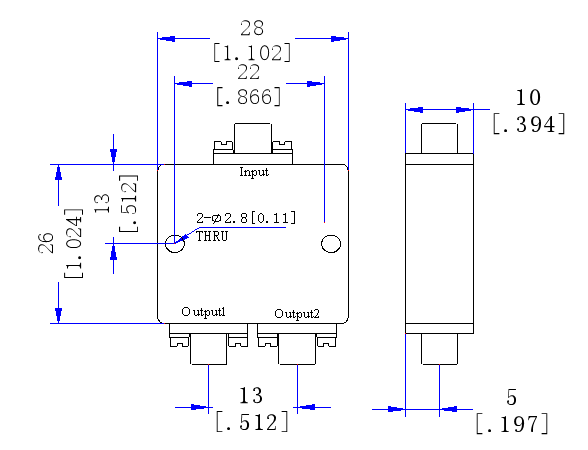

Outline Dimensions:26*28*10（mm）
