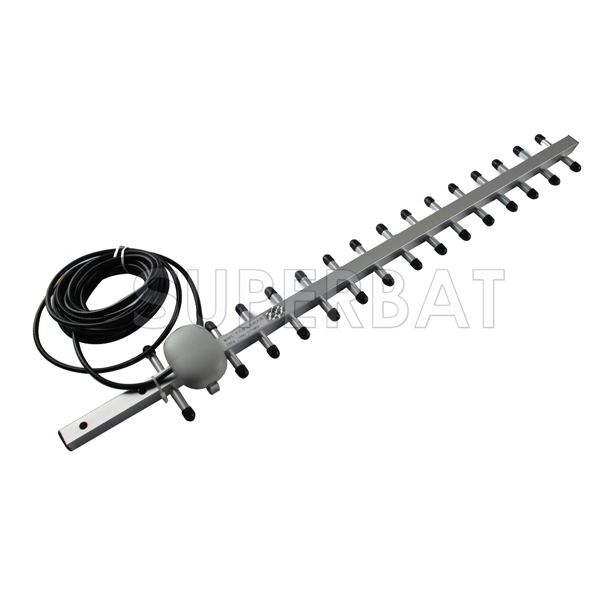

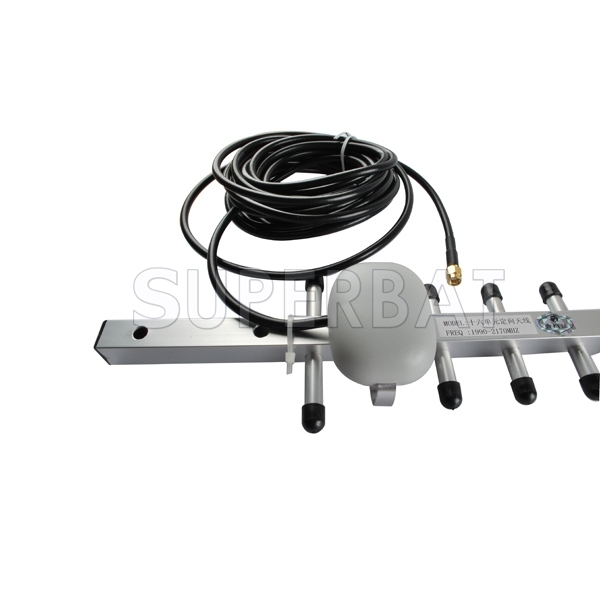

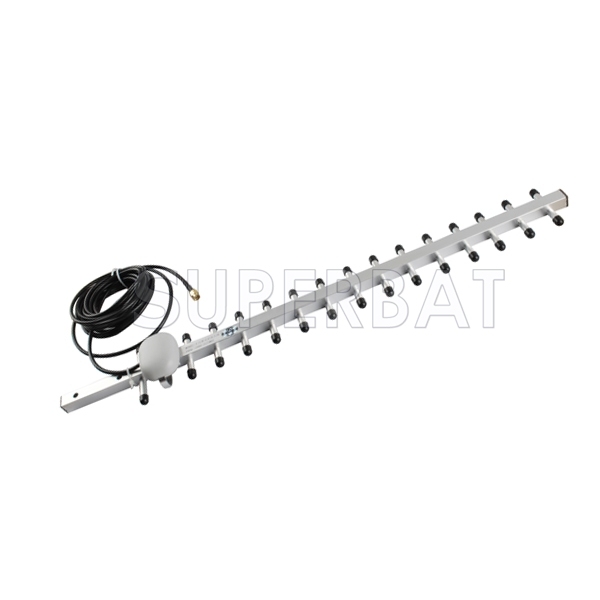

Product Name: Yagi Antennas
Electrical specifications
Frequency Range-MHz: 1990-2170MHz
VSWR: ≤1.5
Input Impedance-Ohm: 50
Gain-dBi: 16dbi
Polarization: Vertical
F/B ratio-dB:
Horizontal Beamwidth -°: 54/48/40/36/30
Vertical Beamwidth -°: 48/40/36/32/30
Maximum Power -W: 50
Bandwidth-MHz: 100

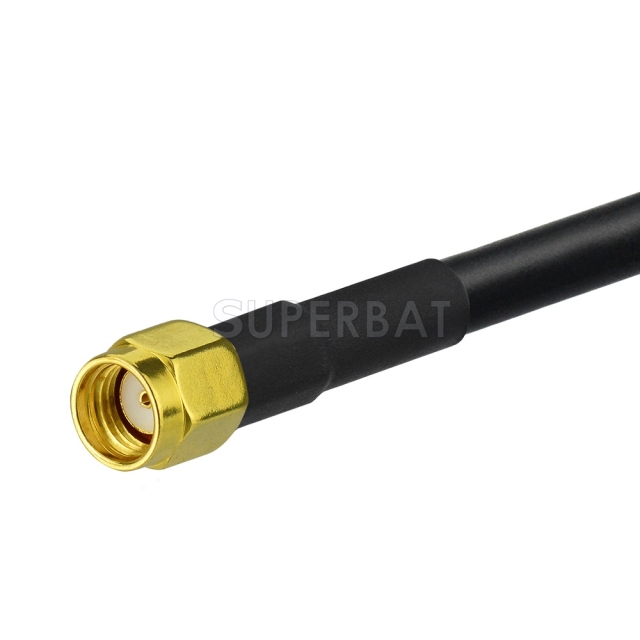

Connector: RP SMA male connector (default) or customized
SMA/SSMB/TNC/BNC/MCX/MMCX/CRC9/TS9/MS147/FME//MC-Card..and so on., please give us notes if the connector is chosen !
Mechanical Specifications
Weight-kg: 0.357
Length-cm: 500
Mounting Mast Diameter-mm: 50-100
