NFC antenna for near-field communication and mobile payments
Frequency ： 13.56Mhz
Working Voltage ： /
Gain： /
Inductance: 2.0uH
Impedance: /

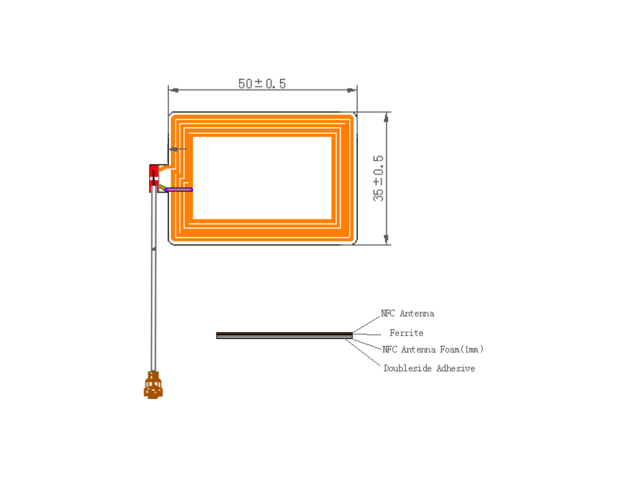

Dimension : 50mm(L)×35mm(W)×1.29mm(H)
Cable length and spec: 90mm (IPEX+φ1.13 ，Customizable）
NFC can exchange data in close proximity to each other by integrating inductive card readers, inductive cards, and point-to-point communication functions on a single chip Suitable for: Mobile payment, electronic ticketing, access control, mobile identity recognition, anti-counterfeiting and other applications
• Double sided NFC antenna, widely used in NFC applications with superior performance
• Small size and flexible installation, Size: 50×35×1.29mm, Adhesive and magnetic
• Wide application, Various models, Mobile payment, access control, and mobile identity recognition
| Electrical/mechanical parameters: | |

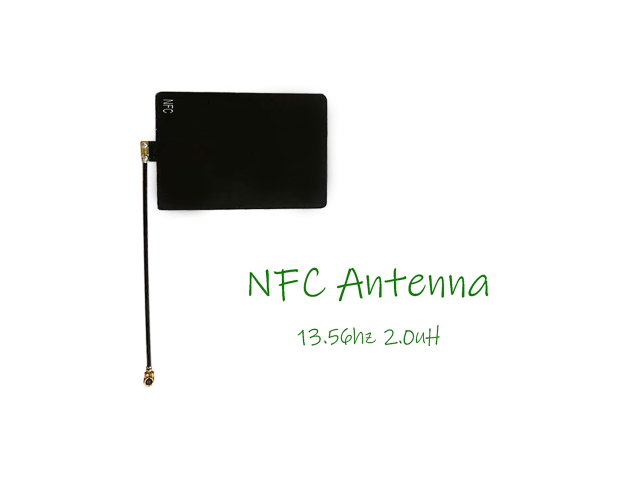

| Basic information: | 2.0uH NFC antenna with Ipex connector |
| Frequency: | 13.56Mhz |
| Inductance: | 2.0uH |
| Cable Length: | 90mm(Customizable) |
| Length: | 50mm |
| Width: | 35mm |
| Thickness: | 1.29mm |
| Installation method: | Adhesive |
| Cable: | 1.13 coaxial cable |
| Environment protection: | ROHS |
