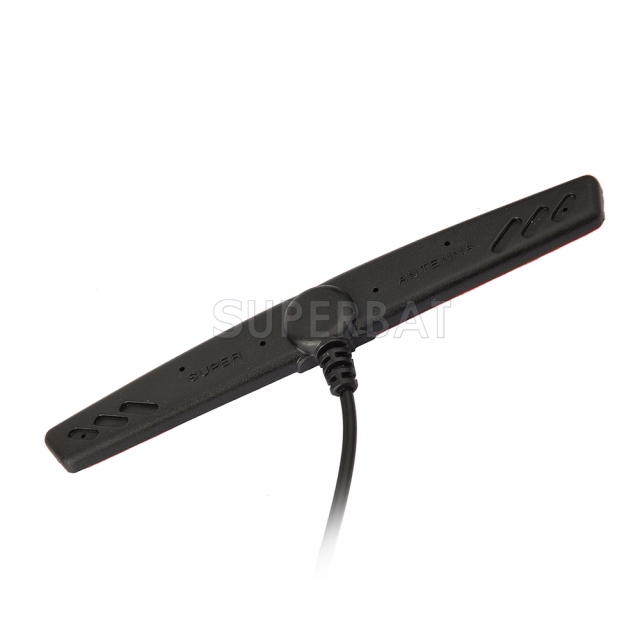

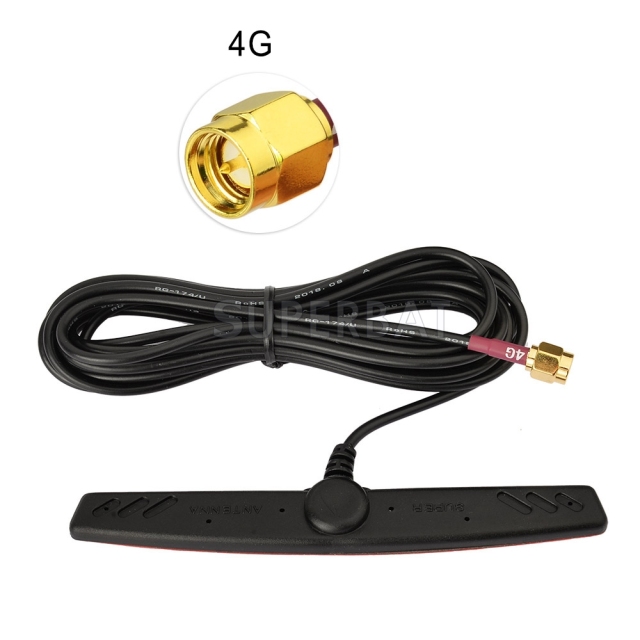

4G LTE 2dBi Omni-directional SMA Male Patch Antenna for 4G LTE Wireless Router Remote IP Camera Vehicle Truck RV Motorhome Cell Phone Signal Booster
4G LTE Antenna Specification:
Frequency Range: 698~960/1710~2690MHz
Polarization: Linear
Gain: 2dBi（Zenith）
V.S.W.R: ＜2.5
Impendance: 50Ω

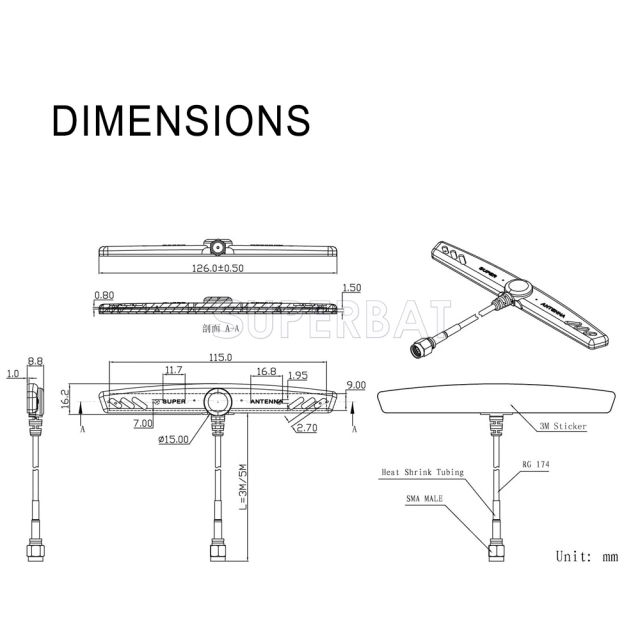

PCB Dimension: 115*9*0.8mm
Weight: 49g
Mechanical:
Cable: RG174
Cable Length: 3 Meters

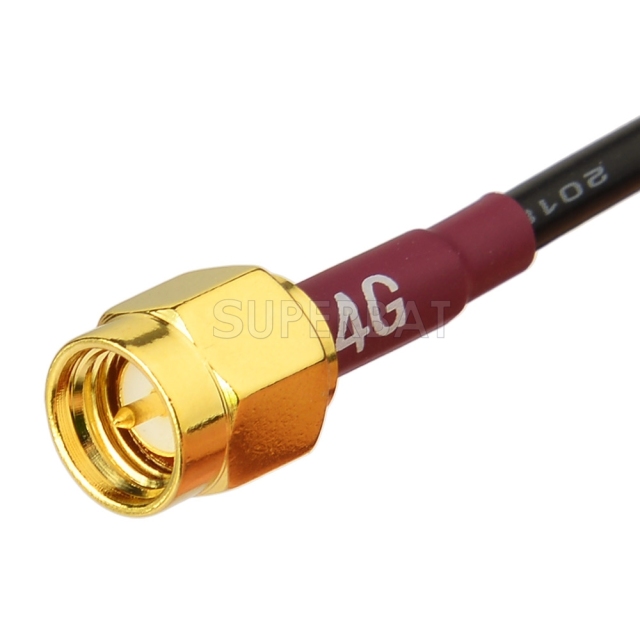

Connector: SMA Male Connector or customized
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!
Radome Material: EVA

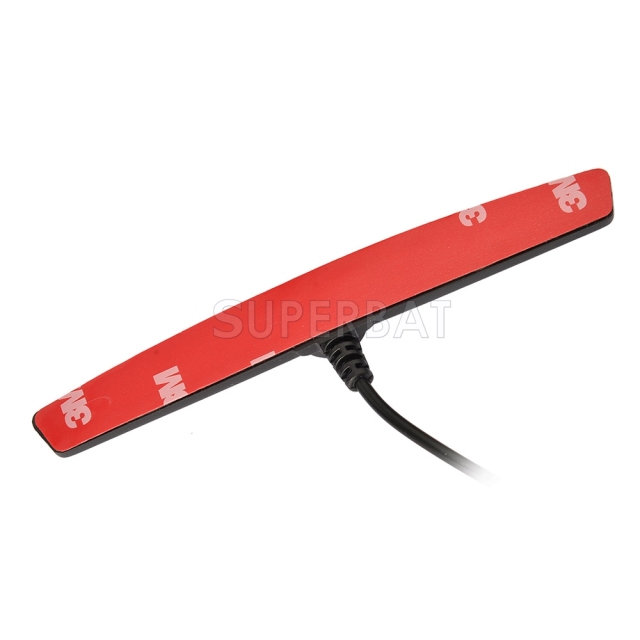

Mounting Method: Adhesive
Environmental:
Operating Temperature: -40℃~+85℃
Relative Humidity: Up to 95%
Ingress Protection: IP67
Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
