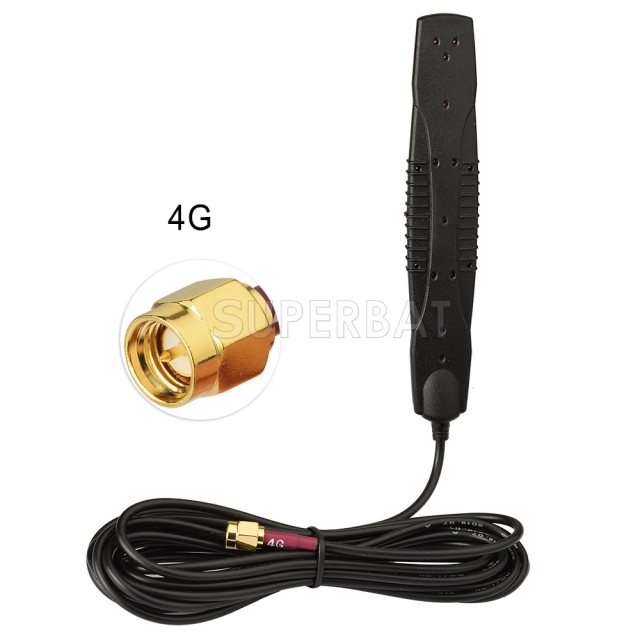

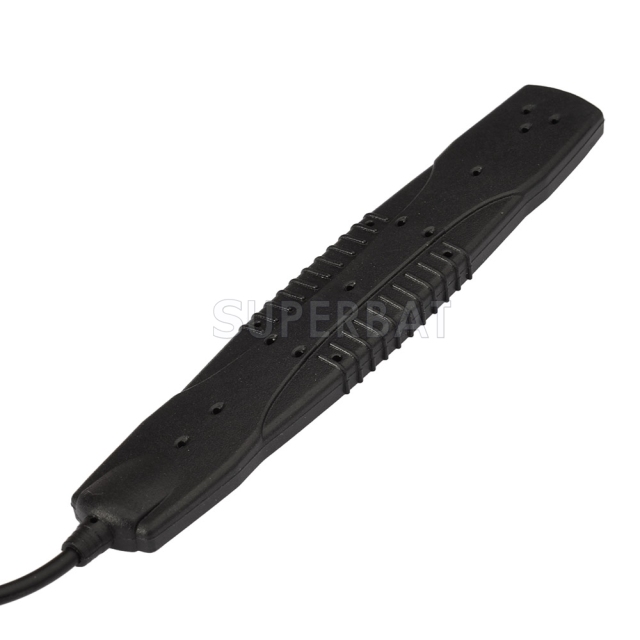

4G LTE 2dBi Vehicle Windshield Glass Mount SMA Male Patch Antenna for 4G LTE Wireless Router Remote IP Camera Truck RV Motorhome Cell Phone Booster

No.4A3-0158-S01SP-020-300-JCG122L
Antenna Type：Glass MountNetwork：4G/LTE AntennaFrequency：698~960/1710~2690MHzConnector Series：SMAConnector Gender：PlugGain：2dbiRadiation：OmnidirectionalV.S.W.R：≤1.5Cable Type：RG174Cable Length：3mWeight：61g
CONTACT US
  • 4G LTE 2dBi Vehicle Windshield Glass Mount SMA Male Patch Antenna for 4G LTE Wireless Router Remote IP Camera Truck RV Motorhome Cell Phone Booster
  • 4G LTE 2dBi Vehicle Windshield Glass Mount SMA Male Patch Antenna for 4G LTE Wireless Router Remote IP Camera Truck RV Motorhome Cell Phone Booster
  • 4G LTE 2dBi Vehicle Windshield Glass Mount SMA Male Patch Antenna for 4G LTE Wireless Router Remote IP Camera Truck RV Motorhome Cell Phone Booster
  • 4G LTE 2dBi Vehicle Windshield Glass Mount SMA Male Patch Antenna for 4G LTE Wireless Router Remote IP Camera Truck RV Motorhome Cell Phone Booster
  • 4G LTE 2dBi Vehicle Windshield Glass Mount SMA Male Patch Antenna for 4G LTE Wireless Router Remote IP Camera Truck RV Motorhome Cell Phone Booster
Description

4G LTE 2dBi Vehicle Windshield Glass Mount SMA Male Patch Antenna for 4G LTE Wireless Router Remote IP Camera Truck RV Motorhome Cell Phone Booster


4G LTE Antenna Specification:

Frequency Range: 698~960/1710~2690MHz

Polarization: Linear

Gain: 2dBi（Zenith）

V.S.W.R: ＜3.0

Impendance: 50Ω

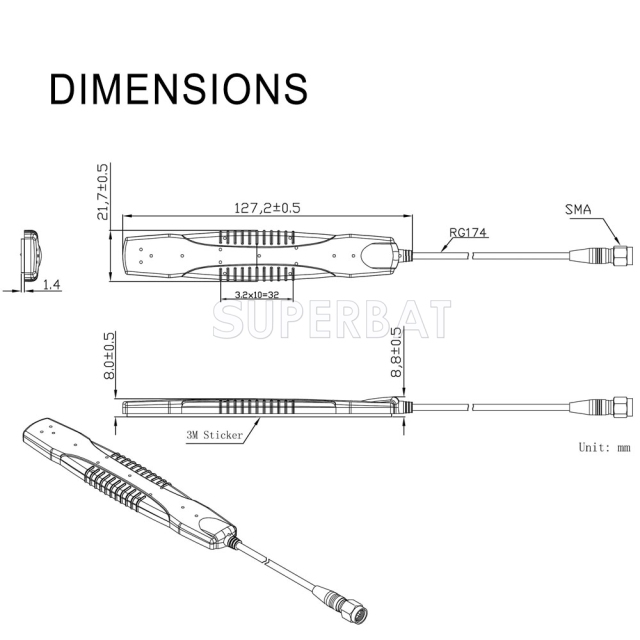

PCB Dimension: 104*15*1mm


Mechanical:

Cable: RG174

Cable Length: 3 Meters

Antenna Connector: SMA or customized
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Radome Material: EVA

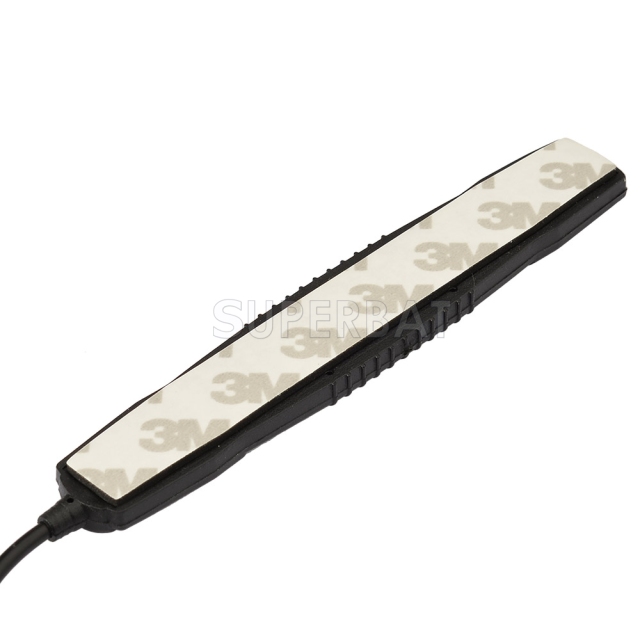

Mounting Method: Adhesive

Weight: 61g


Environmental:

Operating Temperature: -40℃~+85℃

Relative Humidity: Up to 95%

Ingress Protection: IP67

Vibration: 10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly: ROHS Compliant
