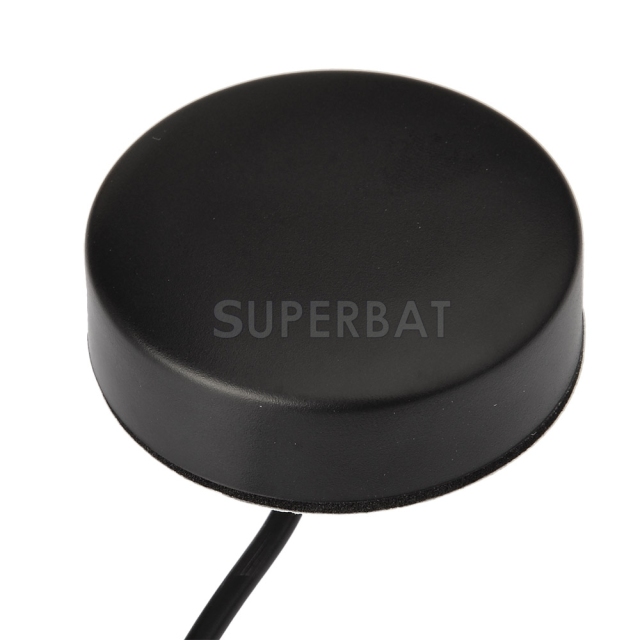

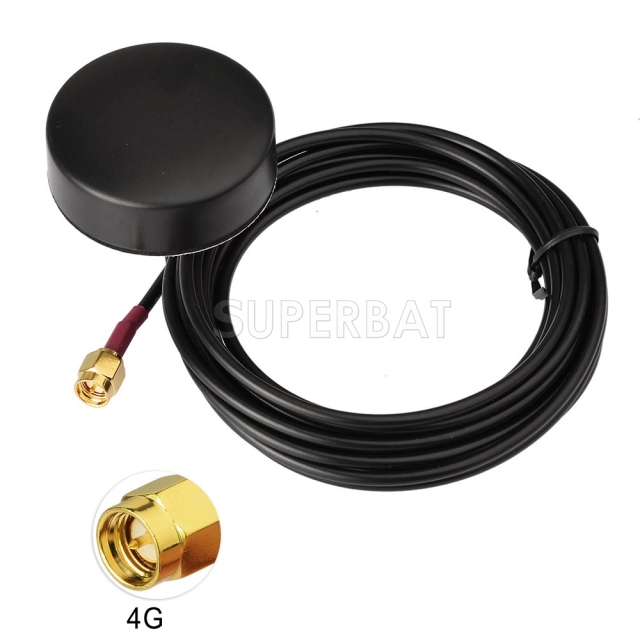

4G LTE Thru Hole Screw Mount 3dBi Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Motorhome Marine Boat Cell Phone Booster System

No.4A3-0150-S01SP-030-300-JCG003L
Antenna Type：Hole/Fixed/Wall/Ceiling MountNetwork：4G/LTE AntennaFrequency：698~960/1710~2690MHzConnector Series：SMAConnector Polarity：StandardConnector Gender：PlugGain：3dBiRadiation：OmnidirectionalV.S.W.R：＜3.0Cable Type：RG174Cable Length：3MWeight：63g
CONTACT US
  • 4G LTE Thru Hole Screw Mount 3dBi Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Motorhome Marine Boat Cell Phone Booster System
  • 4G LTE Thru Hole Screw Mount 3dBi Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Motorhome Marine Boat Cell Phone Booster System
  • 4G LTE Thru Hole Screw Mount 3dBi Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Motorhome Marine Boat Cell Phone Booster System
  • 4G LTE Thru Hole Screw Mount 3dBi Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Motorhome Marine Boat Cell Phone Booster System
  • 4G LTE Thru Hole Screw Mount 3dBi Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Motorhome Marine Boat Cell Phone Booster System
Description

4G LTE Thru Hole Screw Mount 3dBi Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Motorhome Marine Boat Cell Phone Booster System


4G LTE Antenna Specification:

Frequency Range: 698~960/1710~2690MHz

Polarization: Linear

Gain: 3dBi（Zenith）

V.S.W.R: ＜3.0

Impendance: 50Ω


Mechanical:

Cable: RG174

Cable Length: 3 Meters

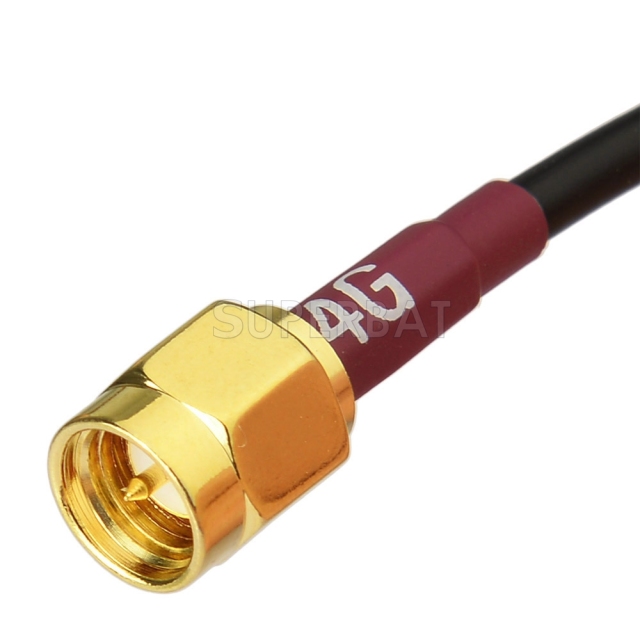

Connector: SMA Male Connector or customized

Material: ABS

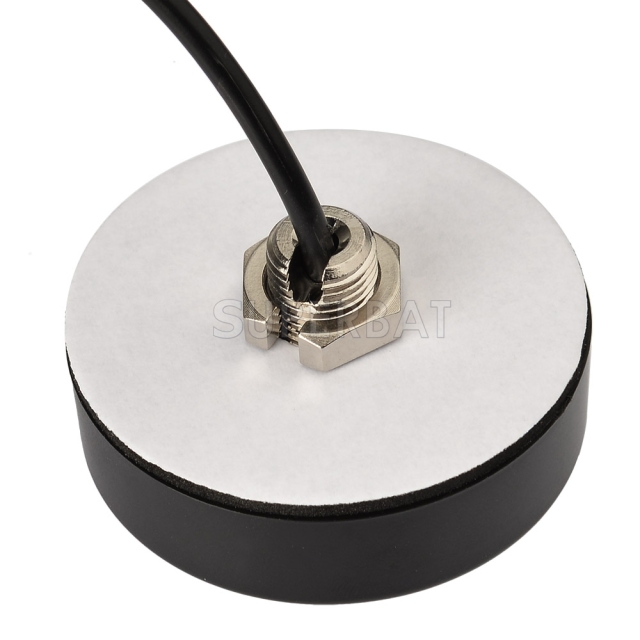

Mounting Method: Screw Thru Hole of 10mm Diameter

Weight: 63g


Environmental:

Operating Temperature: -40℃~+85℃

Relative Humidity: Up to 95%

Ingress Protection: IP67

Vibration: 10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly: ROHS Compliant
