800-6000MHz GSM/GPRS/EDGE/UMTS/ HSPA/CDMA/3G/ WiFi Antenna Ceiling

Product Description:

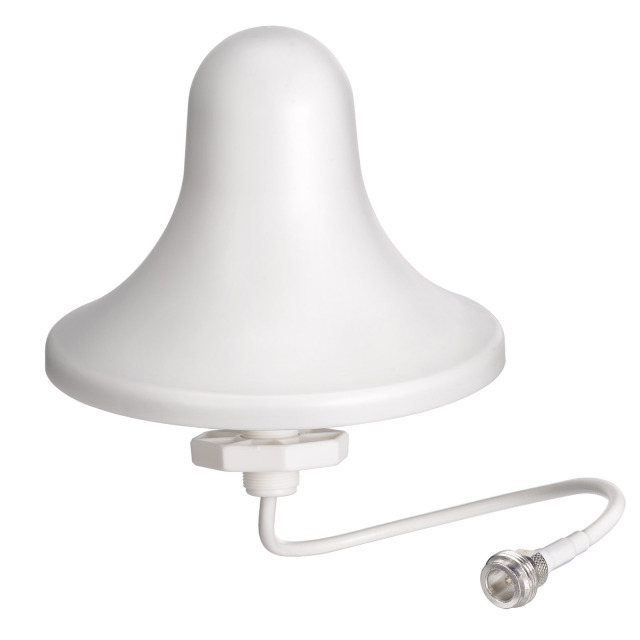

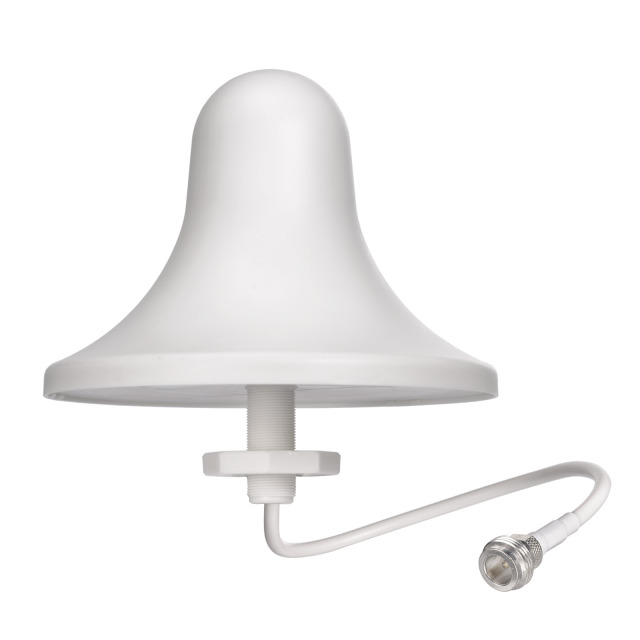

This 800-6000 MHz indoor wireless Omnidirectional Dome antenna series are constructed of white ABS plastic. The low profile attractive styling blends well in almost any office or home environment. Mounting is simplified with a single hole mount design to easily mount to drop ceilings or fixed ceilings. The antenna comes with a bulkhead N Female connector standard which is long enough to mount thru thick ceiling.



Ceiling antenna is the ideal solution for offices hotels and rooms where we can mount our antenna on the ceiling for GSM and WIFI, the 5dbi of gain in 360 degrees omni direction gives very good coverage in large areas from the 800MHZ to 6000MHz frequency range.

Features:

Exquisite Appearance
broadband, low VSWR, anti-jamming
High gain omnidirectional indoor antenna
Operates simultaneously on Cell, GSM, PCS, and ISM
ordinary ceiling ceiling installation

Specification

Model:3A3-1400-N01SJ-050-16

Frequency  Range(MHz): 800-6000  MHz

VSWR:≤1.5

Gain: 5 dBi

Directionality:  omnidirectional

F/B ratio:15 dB

Bandwidth:100 MHz

Max power:100 W

Nominal Impedance:50Ω

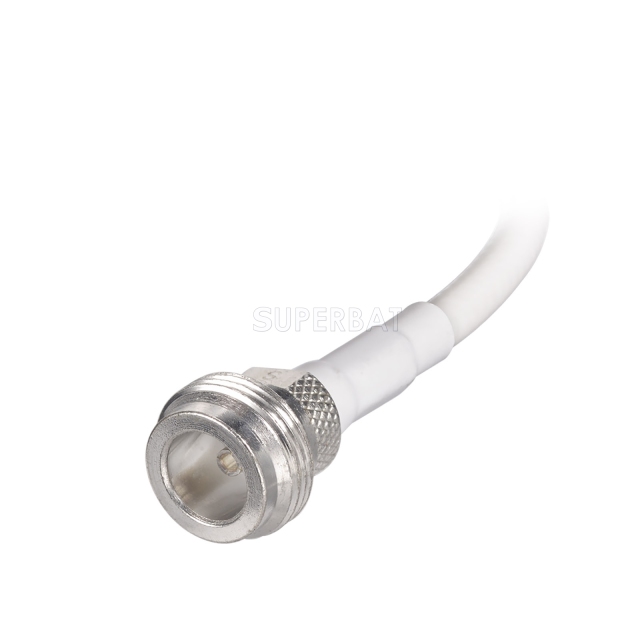

Antenna Connector: N-Type Female

Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if the connector is chosen!

Dimension:Φ180×90 mm

Weight:0.248 KG

800MHz+900MHz+1800MHz+1900MHz+3G+2400MHz WLAN

GSM 850/900: 824 - 960Mhz

GSM 1800/1900:1710 - 2500Mhz

UMTS: 1900 - 2170 MHz

CDMA 800/1900

800MHz+900MHz+1800MHz+1900MHz+3G WLAN Ceiling

2400MHz +3500MHz+5800MHz WLAN Ceilin
