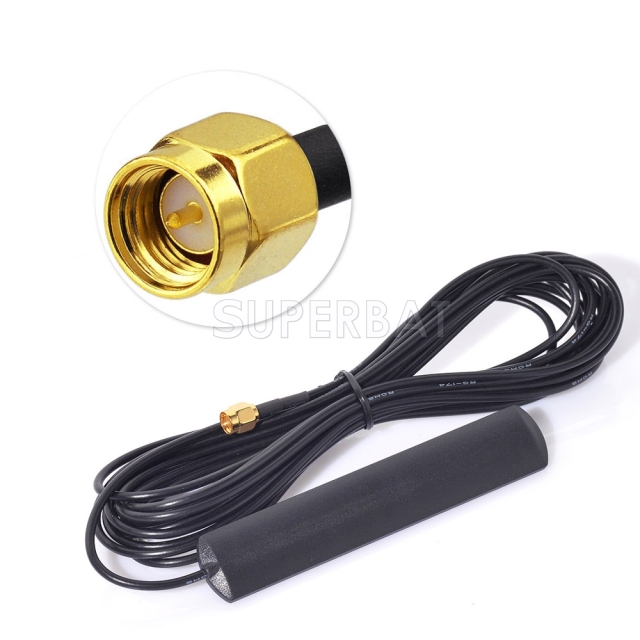

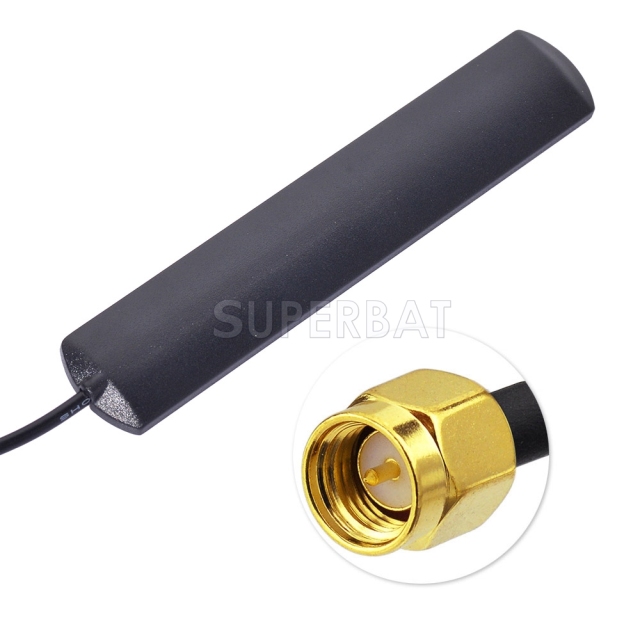

824-2170MHz GSM/UMTS/CDMA Antenna 2DBi SMA connector for USB Modems

No.3A3-1312-S01SP-020-300
Antenna Type：Glass MountNetwork：3G/UMTS/CDMA2000 AntennaFrequency：824～960/1710～1990/1920～2170 MHzConnector Series：SMAConnector Polarity：StandardConnector Gender：PlugGain：2dbiRadiation：OmnidirectionalV.S.W.R：≤2.0Cable Type：RG174Cable Length：3mWeight：64g
CONTACT US
  • 824-2170MHz GSM/UMTS/CDMA Antenna 2DBi SMA connector for USB Modems
  • 824-2170MHz GSM/UMTS/CDMA Antenna 2DBi SMA connector for USB Modems
  • 824-2170MHz GSM/UMTS/CDMA Antenna 2DBi SMA connector for USB Modems
Description

Specification:

Frequency(MHz): 824～960 MHz/1710～1990 MHz/1920～2170 MHz


GSM 850/900: 824 - 960Mhz



GSM 1800/1900: 1710 - 1990Mhz



HSPA/HSUPA/HSDPA/UMTS/3G 2100Mhz: 1920 - 2170 MHz



CDMA 1900 : 1710 - 1990Mhz



V.S.W.R（5m）：≤2.0：1



Gain: 2 dBi


Impedance：50 Ω


Cable: RG174 3m default /5m or others


Cable Connector: SMA or customized


Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Plastic Housing:Black

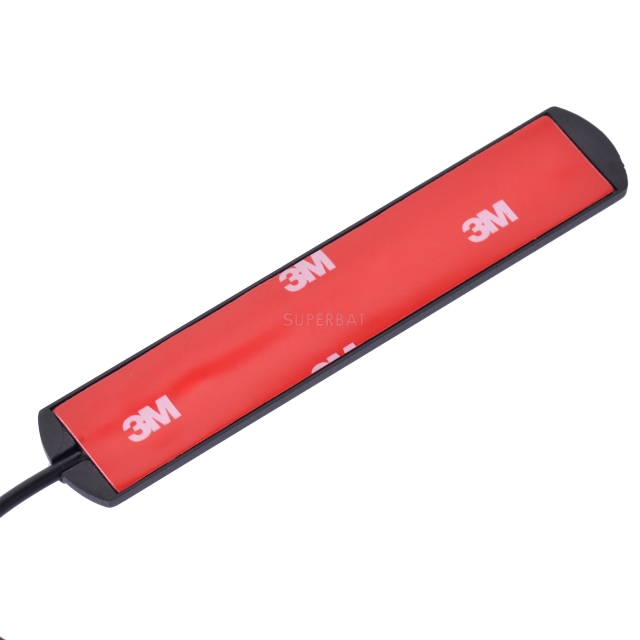

Mounting:Adhesive


Weight: 64g
