Product Description:

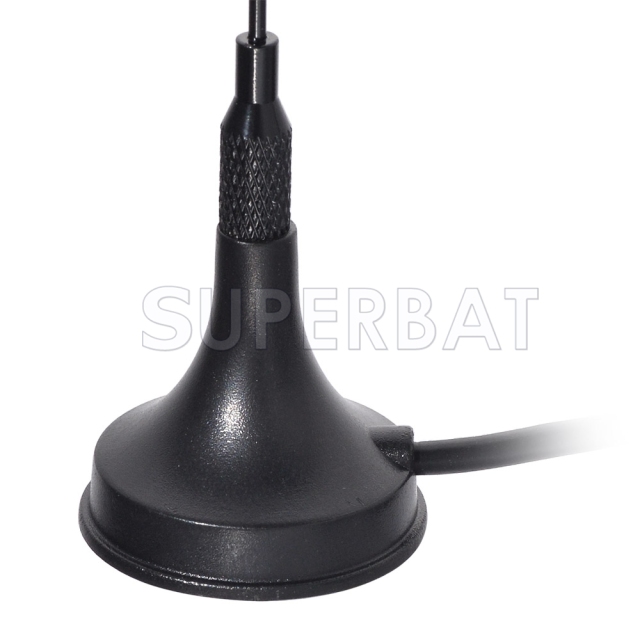

This GSM External Antenna simply screws in to replace the existing antenna to increase signal strength by 3.5dBi. It has a magnetic base so will attach to any metallic object that is magnetic.
Product feature:
Specification:
| Frequency Range | 896~960MHz, |
| bandwidth | 70/170 |
| VSWR | ≤2 |
| Gain | 3.5dBi |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 42° |
| Polarization Type | Vertical |
| Max Input power | 50W |
| input impedance | 50Ω |
| Size | 30*300mm |
| Cable | RG174 ,3meter |
| Housing | Black |
| Mounting | Magnetic |
| Weight | 47g |
| Connector | SMA male straight default, if you need SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks! |
