Home > All Collections > Antenna 315Mhz,3dbi SMA Plug straight with Magnetic base for wireless data trans
  • Antenna 315Mhz,3dbi SMA Plug straight with Magnetic base for wireless data trans
  • Antenna 315Mhz,3dbi SMA Plug straight with Magnetic base for wireless data trans
  • Antenna 315Mhz,3dbi SMA Plug straight with Magnetic base for wireless data trans
  • Antenna 315Mhz,3dbi SMA Plug straight with Magnetic base for wireless data trans

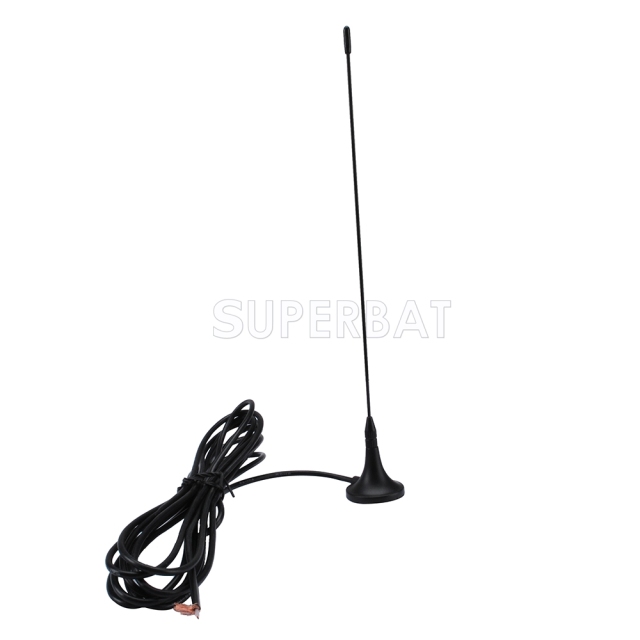

Antenna 315Mhz,3dbi SMA Plug straight with Magnetic base for wireless data trans

No.EA1-2585-S01SP-030-300
Type：other AntennaCenter Frequency：315+/-15MHzConnector Series：SMAConnector Polarity：StandardConnector Gender：Straight plugImpedance：50Nominal Gain：3dbiV.S.W.R：≤1.5Cable Length：3M
CONTACT US
  • Antenna 315Mhz,3dbi SMA Plug straight with Magnetic base for wireless data trans
  • Antenna 315Mhz,3dbi SMA Plug straight with Magnetic base for wireless data trans
Description

Features:
Frequency Range（MHz） 315+/-15
Bandwidth（MHz） 30
VSWR ≤1.5
Gain（dBi） 3dbi
Max Input power（W）50
Input Impedance（Ω） 50
Polarization Type :Vertica
Antenna High（mm） 230
Cable Length﹙mm﹚ 2000,3000,5000 or other
Cable Type RG174
Connector Type SMA Plug connector (Default )/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
Mounting Magnetic
Radiation :Omni-direction
Max Diameter :30mm
Min Diameter :1.5mm
Max wind speed :200km/h
