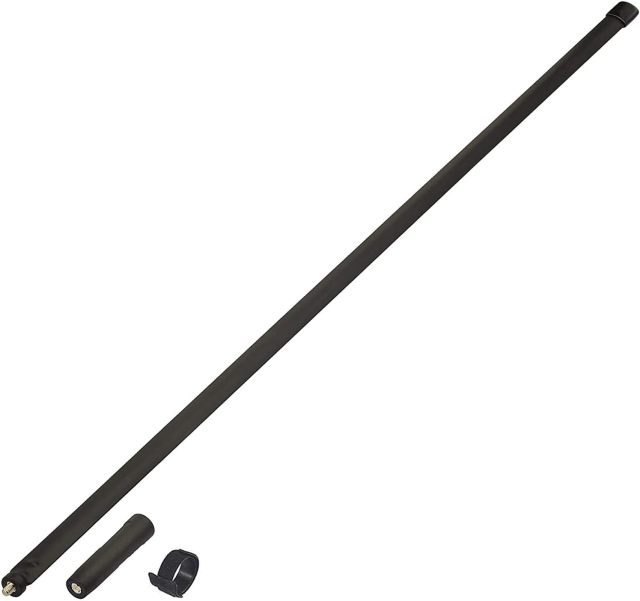

Bingfu Dual Band VHF UHF 136-520MHz 42.5 inch Foldable CS Tactical SMA Female Ham Radio Antenna with 3 feet Extension Relocation Cable for Baofeng BF-F8HP UV-5R UV-82 BF-888S GT-3 Ham Radio

No.B08TGZKNP3
$18.99
Color:
12.2 inches Antenna
42.5 inches Antenna with 3 feet Cable
CONTACT US
  • Bingfu Dual Band VHF UHF 136-520MHz 42.5 inch Foldable CS Tactical SMA Female Ham Radio Antenna with 3 feet Extension Relocation Cable for Baofeng BF-F8HP UV-5R UV-82 BF-888S GT-3 Ham Radio
  • Bingfu Dual Band VHF UHF 136-520MHz 42.5 inch Foldable CS Tactical SMA Female Ham Radio Antenna with 3 feet Extension Relocation Cable for Baofeng BF-F8HP UV-5R UV-82 BF-888S GT-3 Ham Radio
  • Bingfu Dual Band VHF UHF 136-520MHz 42.5 inch Foldable CS Tactical SMA Female Ham Radio Antenna with 3 feet Extension Relocation Cable for Baofeng BF-F8HP UV-5R UV-82 BF-888S GT-3 Ham Radio
  • Bingfu Dual Band VHF UHF 136-520MHz 42.5 inch Foldable CS Tactical SMA Female Ham Radio Antenna with 3 feet Extension Relocation Cable for Baofeng BF-F8HP UV-5R UV-82 BF-888S GT-3 Ham Radio
  • Bingfu Dual Band VHF UHF 136-520MHz 42.5 inch Foldable CS Tactical SMA Female Ham Radio Antenna with 3 feet Extension Relocation Cable for Baofeng BF-F8HP UV-5R UV-82 BF-888S GT-3 Ham Radio
Description
vhf uhf antenna

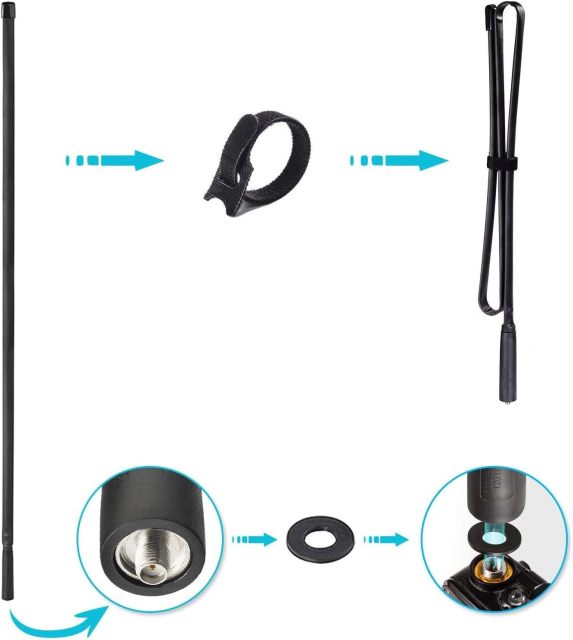

flexible and portable
boost the signal strength and range

Specifications

Gain 3.5dBi
Frequency Range VHF UHF 136-520MHz
VSWR <2.0
Impedance 50 ohm
Direction Omni-directional
Max Input Power 8W

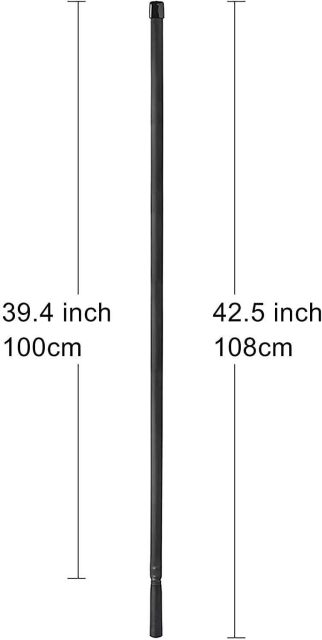

Antenna Length 42.5 inch / 108cm
Connector SMA Female Connector
Extension Cable 3.3 feet / 1m SMA Female to SMA Male Right Angle RG58 Coaxial Cable
Net Weight 208g
Operating Temperature -20°С ~ +80°С
Storage Temperature -30°С ~ +85°С
Package List 1 x Antenna, 1 x Extension Cable (As the Picture Shown)

Compatible with Ham Radio

BaoFeng UV-5R UV5RA UV-5RE BF-F8HP BF-F8 UV-82 UV-82HP BF-888S UV-5X3 UV-5RM UV-9R BF-666S BF-777S BF-320 BF-790 BF-490 BF-V6 BF-V8 BF-F9 BF-F8Plus BF-388A GT-3 UV-5RB UV-5RC UV-5RD UV-5REPlus UV-5RG UV-5RQ UV-5RT UV-5S UV-5U UV-B5 UV-B6 ect.
Wouxun KG-659 KG-669 KG-679 KG-689 KG-699E KG-801 KG-816 KG-818 KG-819 KG-833 KG-889 KG-UVD1P ect.
HYT TC-268 TC-268S TC-368 TC-368S TC-370S TC-500 TC-500S ect.
TYT TH-F1 TH-F2 TH-T2 TH-T3 TH-F6 TYT-300 TYT-500 TYT-600 TYT-800 TYT-888 ect.
Linton LT-2288 LT-3288 LT-6288 LT-3188 LT-2188 LT-3260 LT-3268 LT6188 ect.
Puxing PX-777 PX-777 PLUS PX-666 PX-888 ect.
Quansheng TG-K4AT TG-2AT TG-45AT TG-42AT TG-22AT TG-25AT TG-UV ect.
