Bingfu Vehicle GPS Navigation Antenna Active GPS Antenna with Fakra C Right Angle Connector Compatible with Car Truck GPS Navigation Receiver System Factory DVD Stereo Head Unit

No.B08HHXHHKS
$10.99
Color:
AVIC Antenna
Fakra C Antenna
Fakra C Right Angle Antenna
Fakra H Antenna
CONTACT US
  • Bingfu Vehicle GPS Navigation Antenna Active GPS Antenna with Fakra C Right Angle Connector Compatible with Car Truck GPS Navigation Receiver System Factory DVD Stereo Head Unit
  • Bingfu Vehicle GPS Navigation Antenna Active GPS Antenna with Fakra C Right Angle Connector Compatible with Car Truck GPS Navigation Receiver System Factory DVD Stereo Head Unit
  • Bingfu Vehicle GPS Navigation Antenna Active GPS Antenna with Fakra C Right Angle Connector Compatible with Car Truck GPS Navigation Receiver System Factory DVD Stereo Head Unit
  • Bingfu Vehicle GPS Navigation Antenna Active GPS Antenna with Fakra C Right Angle Connector Compatible with Car Truck GPS Navigation Receiver System Factory DVD Stereo Head Unit
  • Bingfu Vehicle GPS Navigation Antenna Active GPS Antenna with Fakra C Right Angle Connector Compatible with Car Truck GPS Navigation Receiver System Factory DVD Stereo Head Unit
  • Bingfu Vehicle GPS Navigation Antenna Active GPS Antenna with Fakra C Right Angle Connector Compatible with Car Truck GPS Navigation Receiver System Factory DVD Stereo Head Unit
  • Bingfu Vehicle GPS Navigation Antenna Active GPS Antenna with Fakra C Right Angle Connector Compatible with Car Truck GPS Navigation Receiver System Factory DVD Stereo Head Unit
Description
feature
size
enhance signal

Specifications:

1. Dielectric Antenna

  • Center Frequency: 1575.42MHz ±3MHz
  • V.S.W.R: 2:01
  • Bandwidth: ±5 MHz
  • Impedance: 50
  • Peak Gain: > 3dBic based on 7x7cm ground plane
  • Gain Coverage: > -4dBic at -90 < 0 < 90 (over 75 volume)
  • Polarization: RHCP

2. LNA/Filter

  • LNA Gain Without cable: 28dB Typical
  • Noise Figure: 2.0dB
  • Filter Out Band Attenuation: (f0=1575.42MHz)
  • 7dB Min f0+/-20MHz;
  • 20dB Min f0+/-50MHz;
  • 30dB Min f0+/-100MHz
  • V.S.W.R: < 2.0
  • DC Voltage: 3V to 5V
  • DC current: 7-10MA

3. Overall

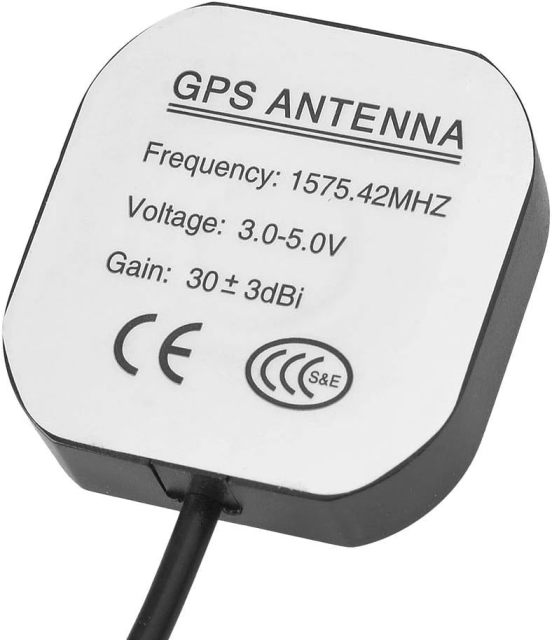

  • Frequency Range: 1575/1609MHz
  • V.S.W.R: 2.0
  • Gain: 30±3dBic
  • Impedance: 50 Ohm

4. Mechanical

  • Weight: 60 gram

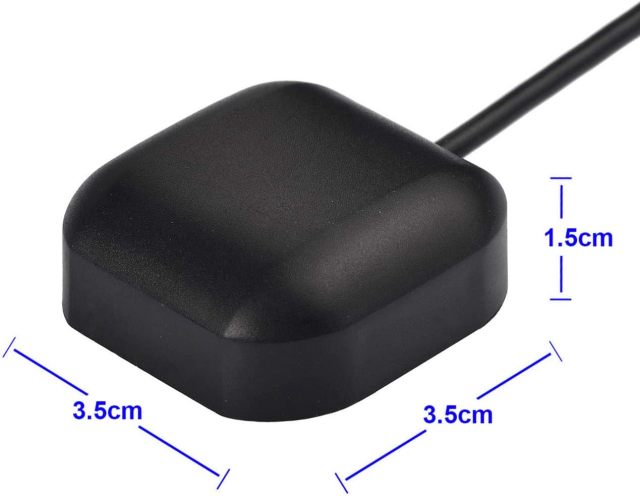

  • Size: 35x30x15mm
  • Cable: RG174
  • Length: 3m

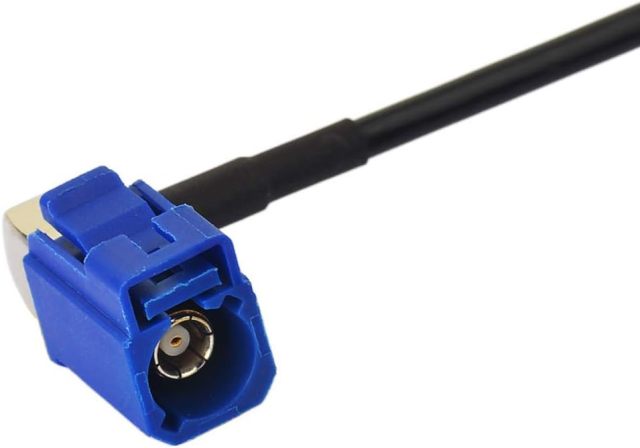

  • Connector: Fakra C Blue
  • Mounting: Magnet base
  • Housing: Black

5. Environmental

  • Working Temp: -40 to 85℃
  • Waterproof test: 4 hours under the tap, let the water rush over the housing;
  • Vibration: Sine sweep 1g (0-p) 10 ~ 50 ~ 10Hz each axis
  • Humidity: 95% ~ 100% R

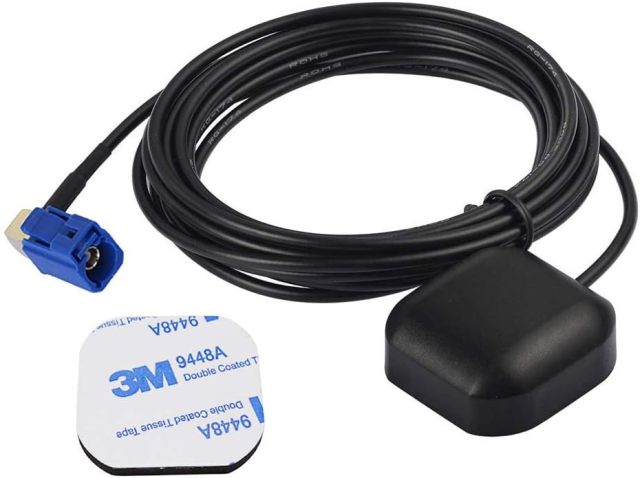

6.Package List: 1 x Antenna (As the Picture Shown)
