Frequency Range(MHz):820-2170
GSM/GPRS/EDGE 850/900/1800/1900MHz/2170MHz
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900 MHz
VSWR ≤1.5
Gain: 10dbi
Max Input power(W): 50
Input Impedance(Ω): 50
Polarization Type: Vertical
Radiation: omnidirectional
Max diameter :70mm
Min diameter :2.5mm
Max Wind Speed :230km/h
Antenna Length(mm):987mm
Cable Length(m): 3M
Cable Type RG58 U/RG 174 default

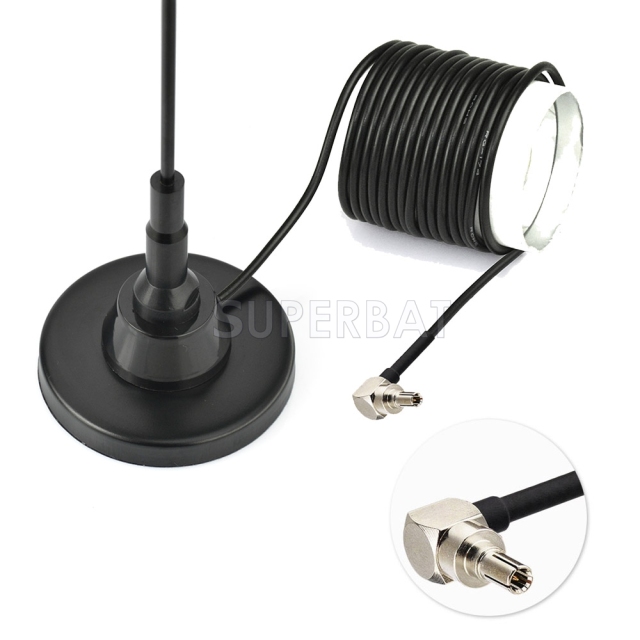

Connector Type : CRC9 or customized
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

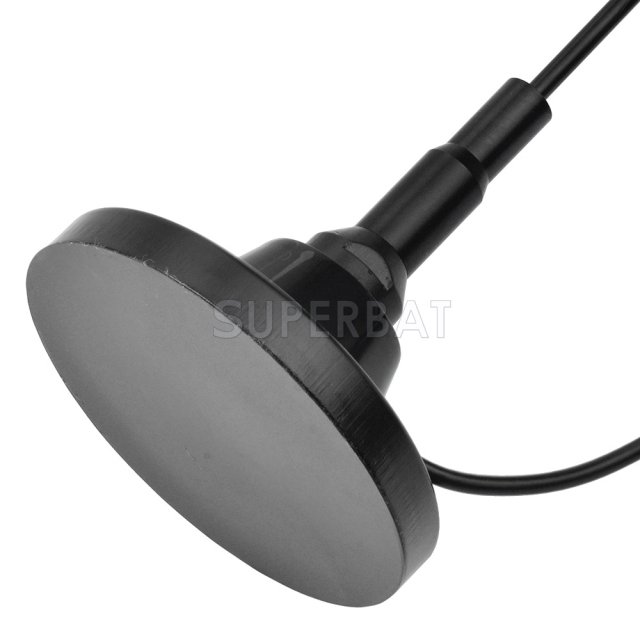

Mounting: Magnetic
Housing: Black
Weight:346g
Storage Temperature: -45'c to +75'c
Operating Temperature: -45'c to+75'c
