NFC antenna for near-field communication and mobile payments
Frequency ： 13.56Mhz
Working Voltage ： /
Gain： /
Inductance: 2.0uH
Impedance: /
Dimension : 42mm(L)×32mm(W)×0.27mm(H)
Cable length and spec: 102mm (28AWG ，Customizable）
NFC can exchange data in close proximity to each other by integrating inductive card readers, inductive cards, and point-to-point communication functions on a single chip Suitable for: Mobile payment, electronic ticketing, access control, mobile identity recognition, anti-counterfeiting and other applications
• Double sided NFC antenna, widely used in NFC applications with superior performance
• Small size and flexible installation, Size: 42×32×0.27mm, Adhesive and magnetic
• Wide application,Various models, Mobile payment, access control, and mobile identity recognition
| Electrical/mechanical parameters: | |

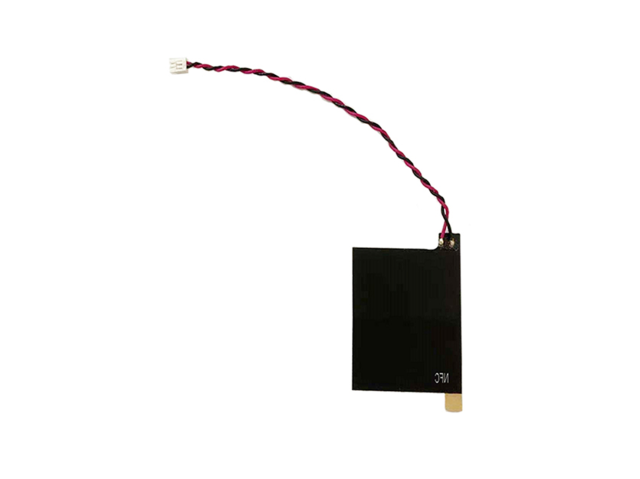

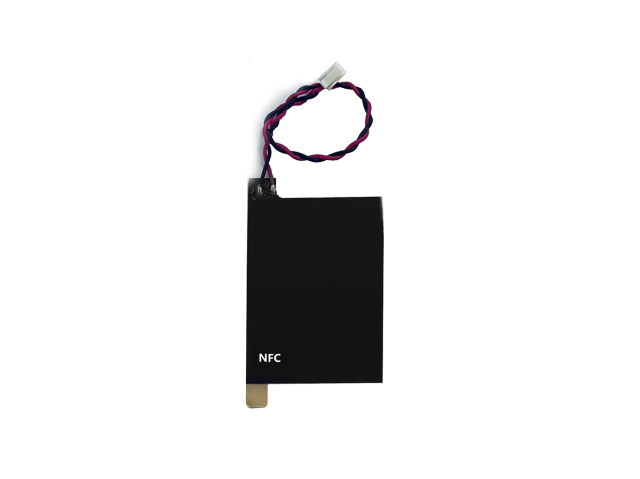

| Basic information: | Double sided 2.0uH NFC antenna with mini lock connector |
| Frequency: | 13.56Mhz |
| Inductance: | 2.0uH |
| Cable Length: | 102mm(Customizable) |
| Length: | 42mm |
| Width: | 32mm |
| Thickness: | 0.27mm |
| Installation method: | Adhesive |
| Cable: | 28AWG |
| Environment protection: | ROHS |
