Home > All Collections > Eightwood > Eightwod RG58 A/U RF Coaxial Cable Flexible Low Loss Coax 50 feet
  • Eightwod RG58 A/U RF Coaxial Cable Flexible Low Loss Coax 50 feet
  • Eightwod RG58 A/U RF Coaxial Cable Flexible Low Loss Coax 50 feet
  • Eightwod RG58 A/U RF Coaxial Cable Flexible Low Loss Coax 50 feet
  • Eightwod RG58 A/U RF Coaxial Cable Flexible Low Loss Coax 50 feet
  • Eightwod RG58 A/U RF Coaxial Cable Flexible Low Loss Coax 50 feet
  • Eightwod RG58 A/U RF Coaxial Cable Flexible Low Loss Coax 50 feet
  • Eightwod RG58 A/U RF Coaxial Cable Flexible Low Loss Coax 50 feet
  • Eightwod RG58 A/U RF Coaxial Cable Flexible Low Loss Coax 50 feet

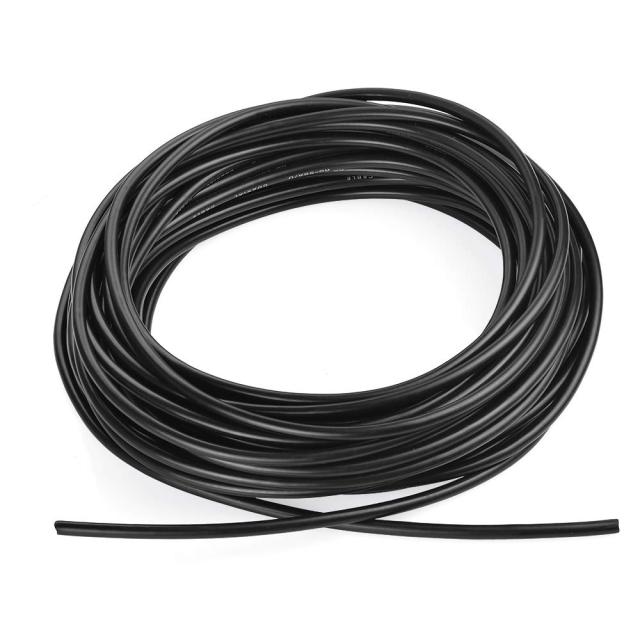

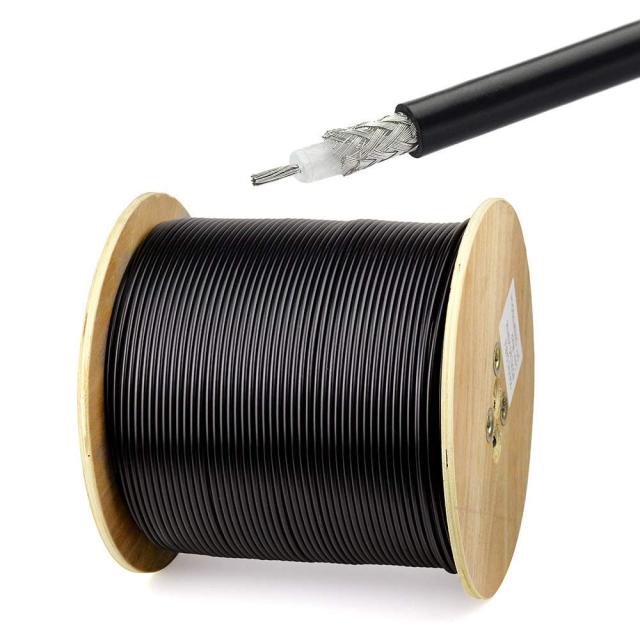

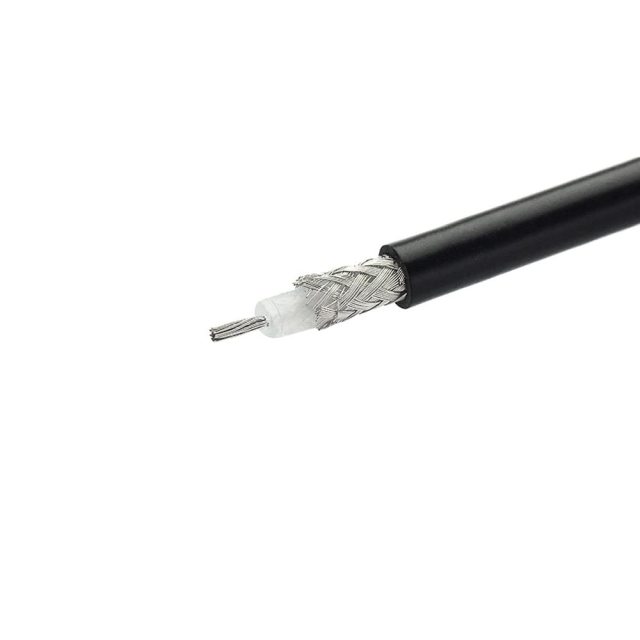

Eightwod RG58 A/U RF Coaxial Cable Flexible Low Loss Coax 50 feet

No.B07GD9FNFR
CONTACT US
  • Eightwod RG58 A/U RF Coaxial Cable Flexible Low Loss Coax 50 feet
  • Eightwod RG58 A/U RF Coaxial Cable Flexible Low Loss Coax 50 feet
  • Eightwod RG58 A/U RF Coaxial Cable Flexible Low Loss Coax 50 feet
  • Eightwod RG58 A/U RF Coaxial Cable Flexible Low Loss Coax 50 feet
Description
low loss rg58 cable

Electrical Specification

Capacitance: 101.05 (pF/m)
Impedance: 50 ohms
Velocity: 66%
Bending radius: 25mm
Max. operation voltage: 1500 vms
Max. operation frequency: 3Ghz
Operating temperature range: -20°C to +80°C

Attenuation (Typical value)

100MHz (Frequency): 0.151 ≯dB/m (Attenuation)
200MHz (Frequency): 0.252 ≯dB/m (Attenuation)
400MHz (Frequency): 0.308 ≯dB/m (Attenuation)
1000MHz (Frequency): 0.502 ≯dB/m (Attenuation)
rg58 coax cable rg400 coax cable rg316 coax cable rg174 coax cable rg402 coax cable
RG58 RG400 RG316 RG174 RG402
See Details
See Details
See Details
See Details
See Details
Customer Reviews
4.4 out of 5 stars
55
4.5 out of 5 stars
126
4.6 out of 5 stars
124
4.3 out of 5 stars
129
5.0 out of 5 stars
15
Cable Diameter(mm) 4.95 4.95 2.5 2.79 3.52
Max.Oper Frequency(Ghz) 3 12.4 3 1 34
Attenuation (db/m)-1GHz 0.502 0.482 0.856 0.899 0.39
rg58 bnc female connector rg58 bnc male rg58 sma male n rg58 male pl259 rg58 connector
RG58 BNC Female Connector RG58 BNC Male Connector RG58 SMA Male Connector RG58 N Male Connector RG58 PL259 Connector
See Details
See Details
See Details
See Details
See Details
Customer Reviews
4.5 out of 5 stars
505
4.5 out of 5 stars
505
4.1 out of 5 stars
116
4.3 out of 5 stars
94
4.4 out of 5 stars
120
Series BNC BNC SMA N UHF /PL 259
Connector Type Jack,Female Pin Plug,Male Pin Jack,Female Pin Plug,Male Pin Plug,Male Pin
Cable Group RG58,RG142,LMR195 RG58,RG142,LMR195 RG58,RG142,LMR195 RG58,RG142,LMR195 RG58,RG142,LMR195
