Specification
Frequency:2.4Ghz 5.8GHz
VSWR<1.8
Gain:2.15 dBi
Polarization:Vertical
Impedance:50 Ohm
Direction: Omnidirectional
Antenna Connector: RP-SMA Male ( NO Male Pin)

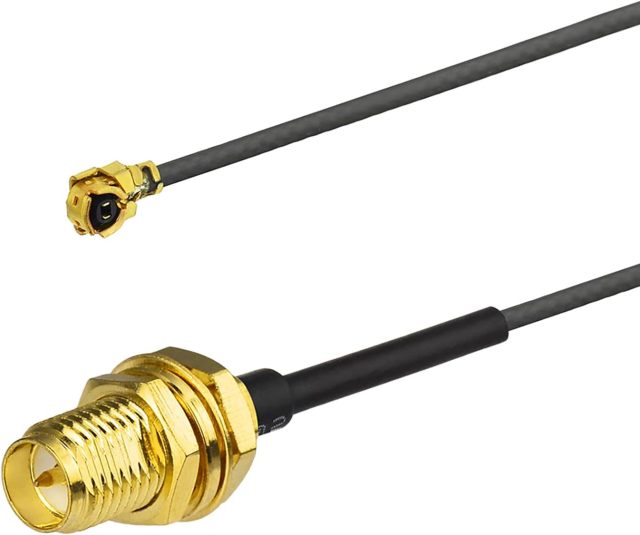

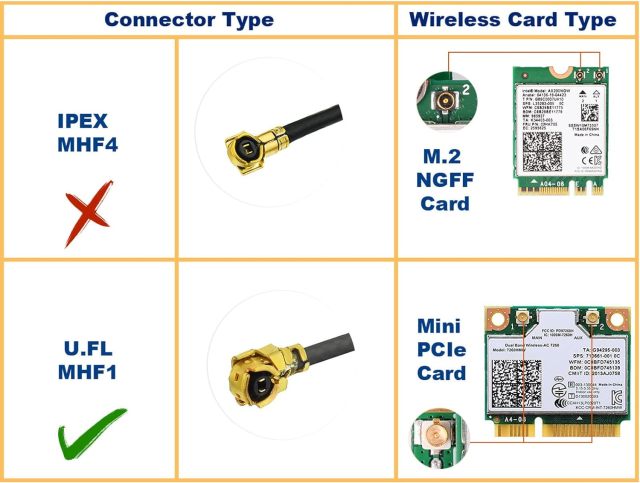

Pigtail Cable Connector: U.FL IPX to RP-SMA female (for Mini PCIe Card)

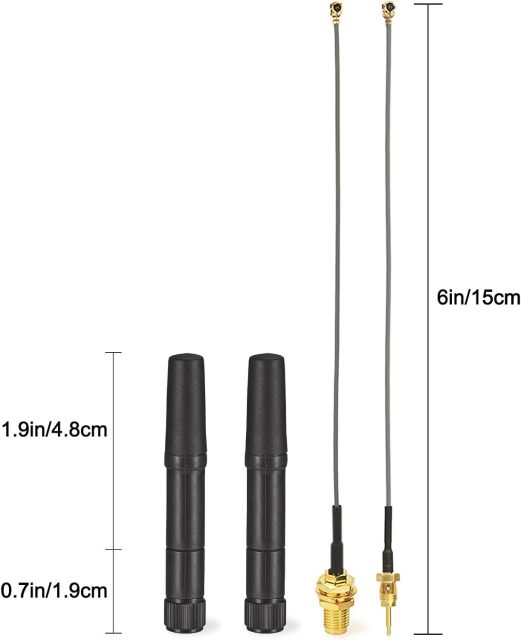

Antenna height: 47mm / 1.85 inch ( rotated by 90 degree); 67mm /2.6 inch (straight)
Maximum input Power:50W
Feature
-Perform well with both 2.4Ghz and 5Ghz.
-Suited for 802.11a/b/g/n, 802.11ac, 802.11ax, wireless LANs, Bluetooth.
-Assist to get reliable Wi-Fi& Bluetooth connection.
-Short WiFi antenna,only 1.9 inch in length, clean and save space compared with wired antenna.
