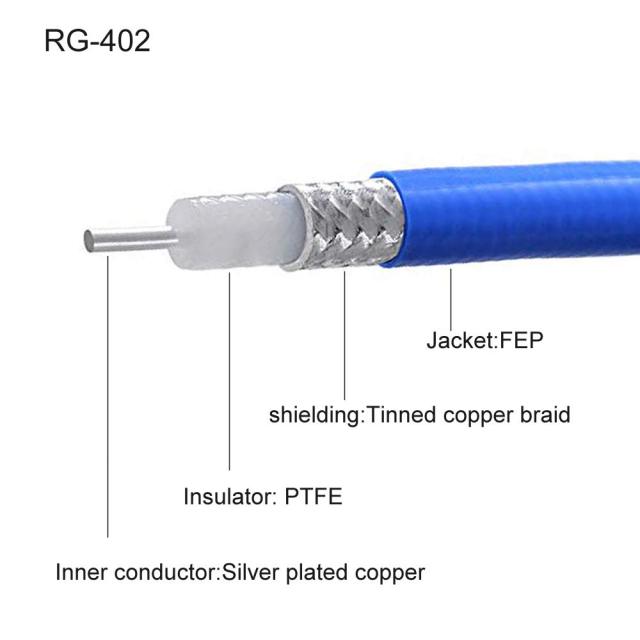

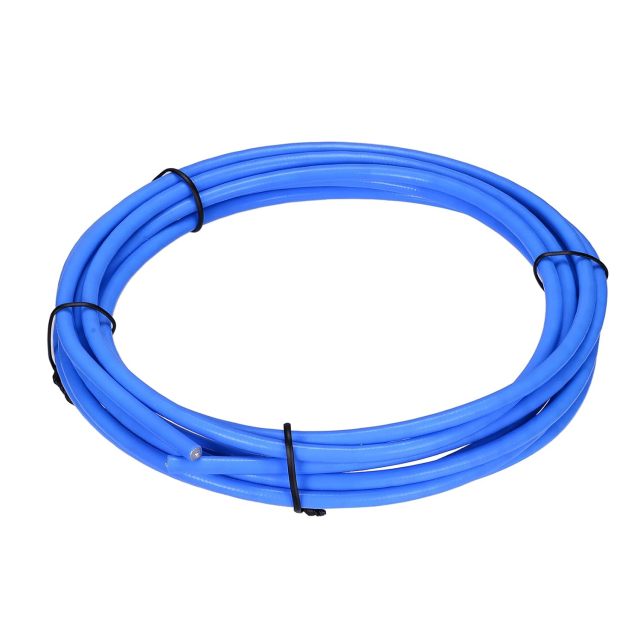

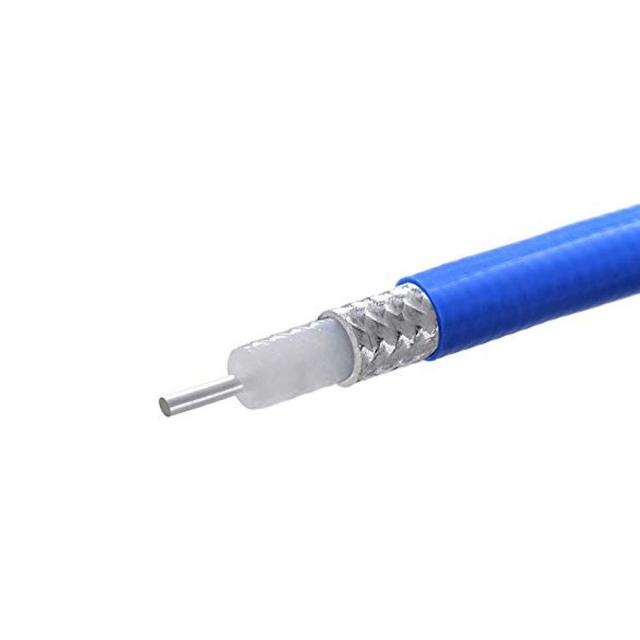

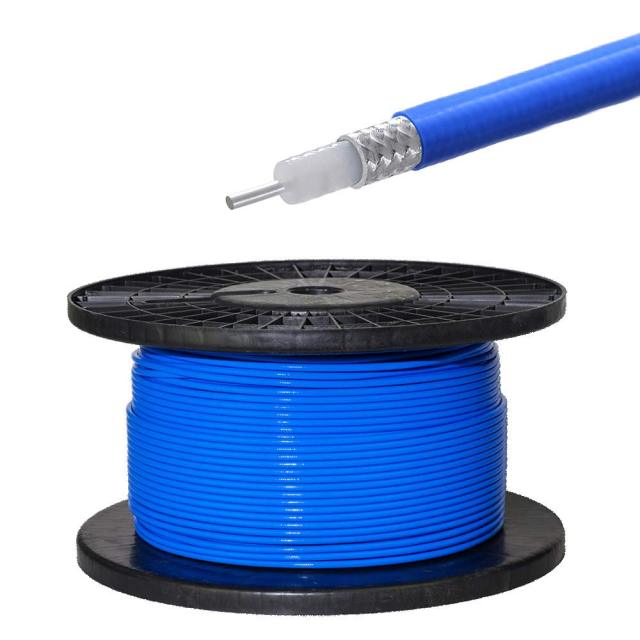

Home > All Collections > Eightwood > Eightwood RG402 .141'' Semi-Flexible RF Coax Cable with Blue FEP Jacket 10 feet
  • Eightwood RG402 .141'' Semi-Flexible RF Coax Cable with Blue FEP Jacket 10 feet
  • Eightwood RG402 .141'' Semi-Flexible RF Coax Cable with Blue FEP Jacket 10 feet
  • Eightwood RG402 .141'' Semi-Flexible RF Coax Cable with Blue FEP Jacket 10 feet
  • Eightwood RG402 .141'' Semi-Flexible RF Coax Cable with Blue FEP Jacket 10 feet
  • Eightwood RG402 .141'' Semi-Flexible RF Coax Cable with Blue FEP Jacket 10 feet
  • Eightwood RG402 .141'' Semi-Flexible RF Coax Cable with Blue FEP Jacket 10 feet
  • Eightwood RG402 .141'' Semi-Flexible RF Coax Cable with Blue FEP Jacket 10 feet
  • Eightwood RG402 .141'' Semi-Flexible RF Coax Cable with Blue FEP Jacket 10 feet

Eightwood RG402 .141'' Semi-Flexible RF Coax Cable with Blue FEP Jacket 10 feet

No.B07GDB9D9H
CONTACT US
  • Eightwood RG402 .141'' Semi-Flexible RF Coax Cable with Blue FEP Jacket 10 feet
  • Eightwood RG402 .141'' Semi-Flexible RF Coax Cable with Blue FEP Jacket 10 feet
  • Eightwood RG402 .141'' Semi-Flexible RF Coax Cable with Blue FEP Jacket 10 feet
  • Eightwood RG402 .141'' Semi-Flexible RF Coax Cable with Blue FEP Jacket 10 feet
Description

Specification

Nom. Capacitance Conductor to Shield(pF/m):95.1

Nom. Characteristic Impedance: 50ohm

Corona Extinction Voltage(VRMS@60Hz):1.9

Voltage Withstanding (VRMS@60Hz):5.0

Min. Bend Radius(Install):12.5

Attenuation

Nom. Attenuation(dB/m): 0.26 (500MHz)

Nom. Attenuation(dB/m): 0.37(1000MHz)

Nom. Attenuation(dB/m): 0.72(3000MHz)

Nom. Attenuation(dB/m): 0.91(5000MHz)

RG58 RG174 RG316 RG142 RG400 RG402
RG58 RG174 RG316 RG142 RG400 RG402
See Details
See Details
See Details
See Details
See Details
See Details
Customer Reviews
4.4 out of 5 stars
55
4.3 out of 5 stars
129
4.6 out of 5 stars
124
5.0 out of 5 stars
16
4.5 out of 5 stars
126
5.0 out of 5 stars
15
Cable Diameter(mm) 4.95 2.79 2.5 4.95 4.9 3.52
Max.Oper Frequency(Ghz) 1 1 3 8 12.4 34
Attenuation(db/m)-1GHz 0.502 0.899 0.856 0.42 0.482 0.39
BNC Connector BNC Male Connector RG58 BNC Connector SMA Connector N Connector UHF Connector
RG58 BNC Female Connector RG58 BNC Male connector Right Angle RG58 BNC Male Connector RG58 SMA Female Connector RG58 N Male Connector RG58UHF Male Connector
See Details
See Details
See Details
See Details
See Details
See Details
Customer Reviews
4.5 out of 5 stars
505
4.4 out of 5 stars
39
4.5 out of 5 stars
505
4.1 out of 5 stars
116
3.0 out of 5 stars
1
4.4 out of 5 stars
120
Series BNC BNC BNC SMA N UHF /PL 259
Connector Type Jack,Female Pin Plug,Male Pin Plug,Male Pin Jack,Female Pin Plug,Male Pin Plug,Male Pin
Cable Group RG58，RG400,RG142,LMR195 RG58，RG400,RG142,LMR195 RG58，RG400,RG142,LMR195 RG58，RG400,RG142,LMR195 RG58，RG400,RG142,LMR195 RG58，RG400,RG142,LMR195
Crimper tool crimper tool
Crimper Tool 336G Crimper Tool 336T
See Details
See Details
Customer Reviews
4.2 out of 5 stars
31
4.7 out of 5 stars
5
Sizes in Die 0.043“, 0.068”, 0.100“, 0.137”, 0.213“ ,0.255” 0.028'',0.039'',0.047'',0.100'',0.128'',0.151''
Cable Group RG58 RG142 RG62 RG62 RG174 RG316 LMR100 RG316 RG174 RG178 RG178 RG179 RG180 RG187 RG196
