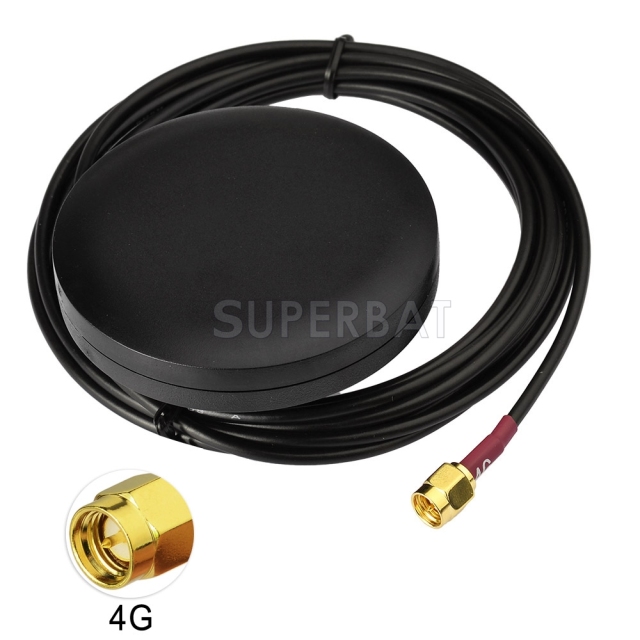

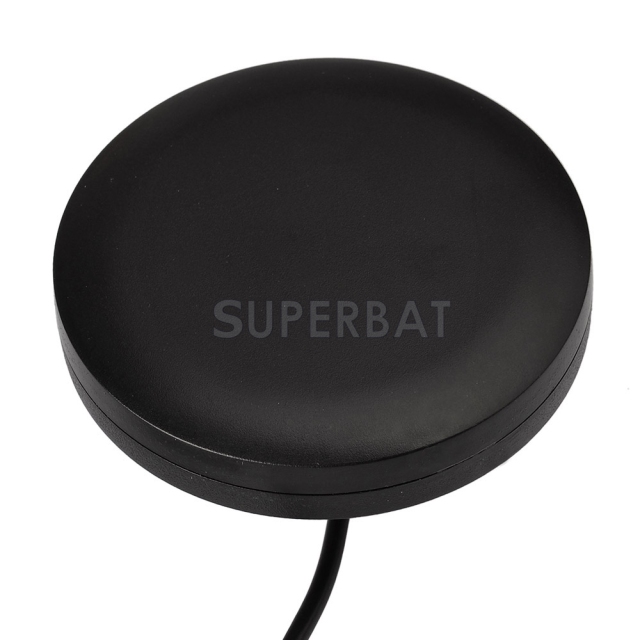

Outdoor 4G LTE Thru Hole Screw Mount Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Marine Boat Mobile Cell Phone Booster System
4G LTE Antenna Specification:
Frequency Range: 698~960/1710~2690MHz
V.S.W.R: ＜3.0
Polarization: Linear
Gain: 2.5dBi（Zenith）
Impendance: 50Ω
Weight: 81g
Mechanical:
Cable: RG174
Cable Length: 3 Meters

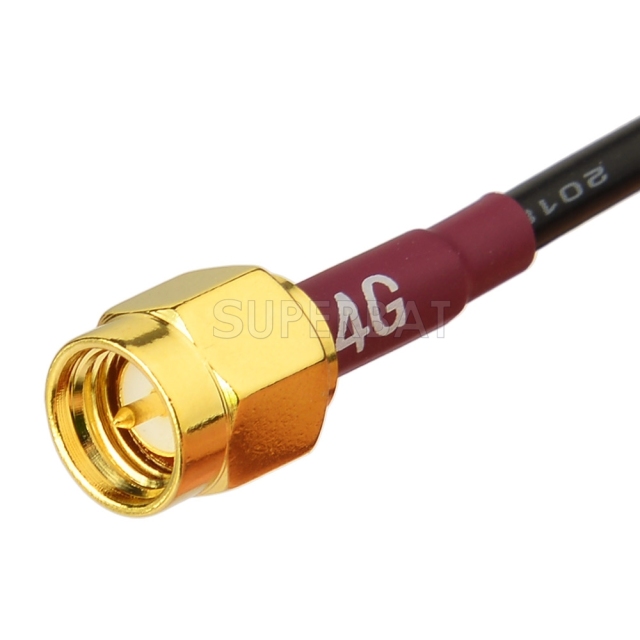

Connector: SMA Male Connector or customized
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!
Material: ABS

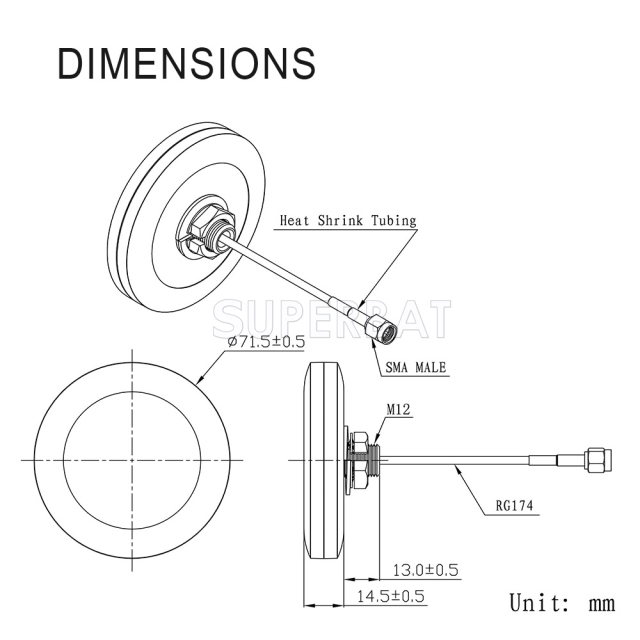

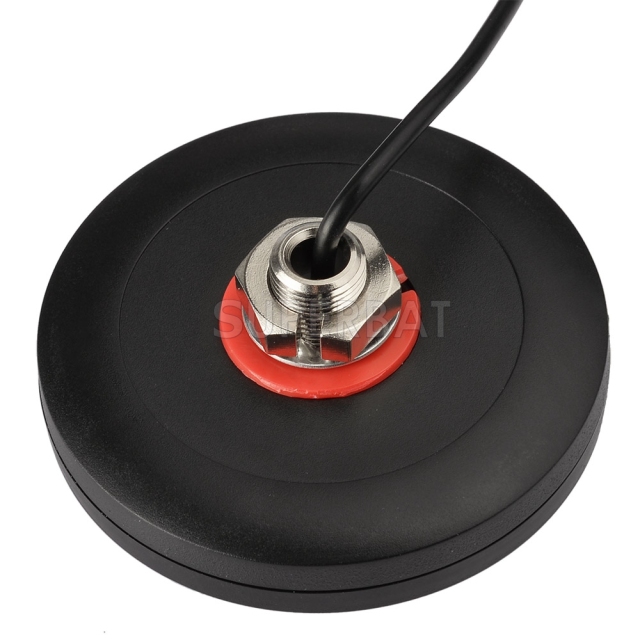

Mounting Method: Screw Thru Hole of 12mm Diameter
Environmental:
Operating Temperature: -40℃~+85℃
Relative Humidity: Up to 95%
Ingress Protection: IP67
Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
