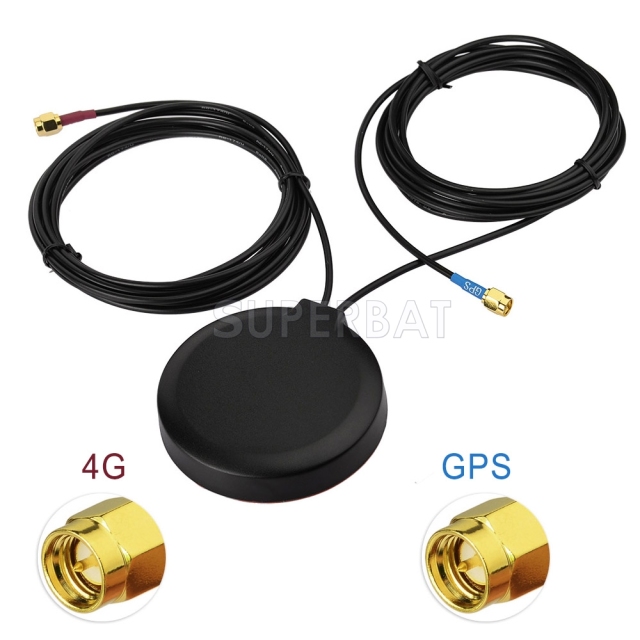

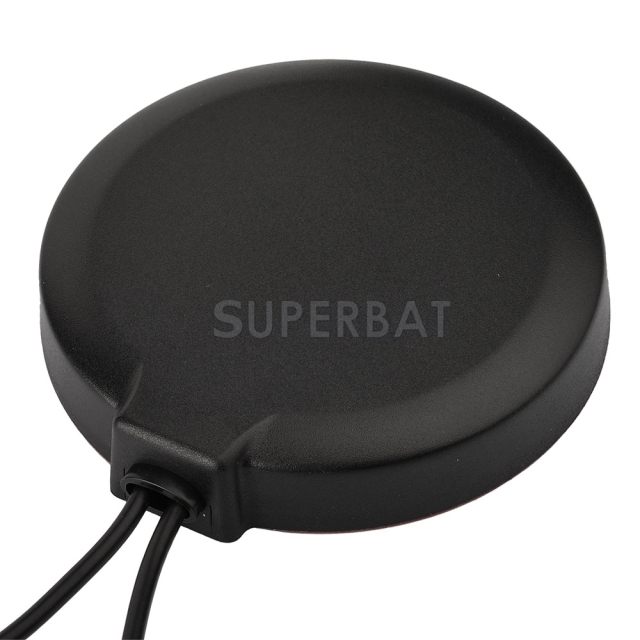

Vehicle Truck RV GPS 4G LTE Magnetic Mount Combined Antenna for GPS Navigation Head Unit Car Telematics 4G LTE Mobile Cell Phone Booster System
GPS Antenna Specification:
Center Frequency: L1:1575.42MHz±1.023 MHz
Band Width： ＞9MHz
Polarization： RHCP
Gain: 2dBic（Zenith）
V.S.W.R: ＜1.5
Impendance: 50Ω
Axial Ratio: 3dB（max）
LNA Gain: 28±2dB
LNA Noise Figure: ＜1.5
LNA Ex-bandAttenuation: 12dB@CF+50MHz/16dB@CF-50MHz
LNA V.S.W.R: ＜2.0
LNA Supply Voltage: 2.2~5V DC
LNA Current Consumption: 5~15mA
4G LTE Antenna Specification:
Frequency Range: 698~960/1710~2700MHz
V.S.W.R: ＜3.0
Polarization: Linear
Gain: 2.0dBi
Impendance: 50Ω

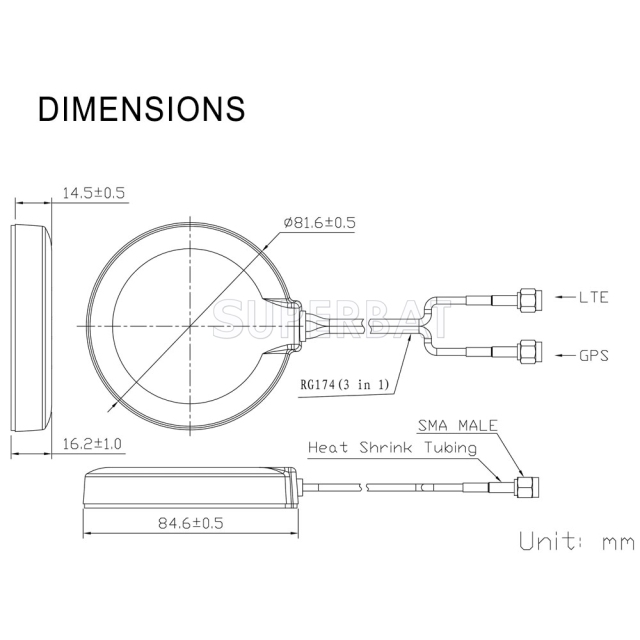

Mechanical:
Cable: RG174
Cable Length: 3 Meters

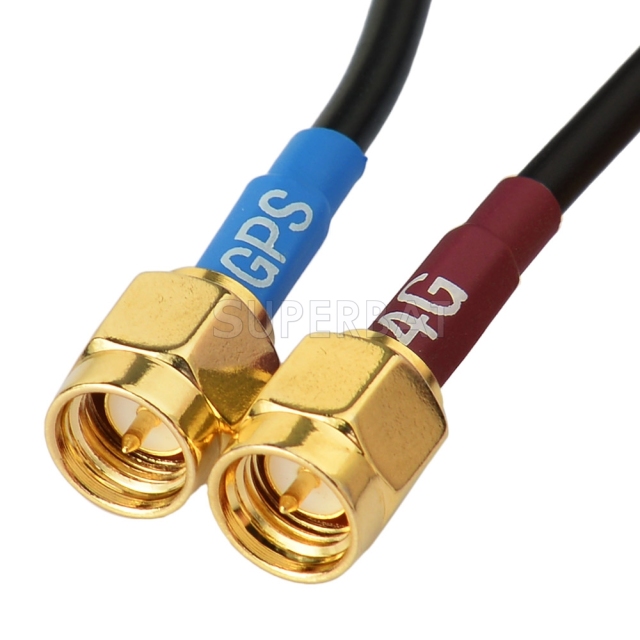

Connector: SMA Male Connector
Material: ABS
Mounting Method: Adhesive/Magnet
Weight: 140g
Environmental:
Operating Temperature: -40℃~+85℃
Relative Humidity: Up to 95%
Ingress Protection: IP67
Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
